> 10 x 30KV 1000PF high voltage ceramic disc capacitors

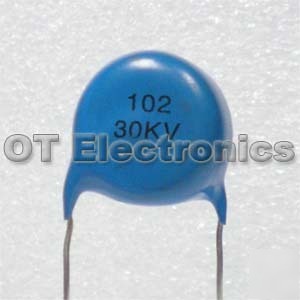

10 x 30KV 1000PF high voltage ceramic disc capacitors
1.Dielectric loss angle tangent: tg 0.003, medium=Y5T
2.Test method for voltage withstand: Test Capacitor with the DC Reverse Tester in oil.(1.2-1.5 times rated voltage)
3.High temperature life: On 10kV(DC) and 120 C, no breakdown within 72 hours
4.Test Method for moisture resistance: Under 1Kgf atmospheric pressure, warming up to 120 C, lasts 24 hours. Test capacitor in normal temperature after 30 minutes, the result is same. Instead of moisture resistance test.
