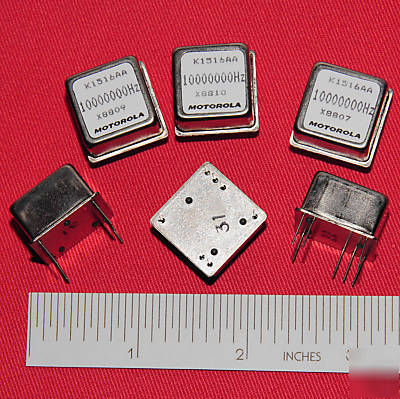

New motorola 10 mhz - vc - tcxo -
PRICE FOR ONE MOTOROLA 10 MHZ VC-TCXO
POWER REQD: 8 VDC (+/- .25VDC) @ 8 mA
10 MHZ OUTPUT: 0.5 V P-P SINE WAVE INTO 1K LOAD
TYP ADJ WITH 10K MULTI TURN POT (NOT INCL)
SIZE: 0.75" SQ x 0.4" H, LEADS 0.25" LONG
PIN SPACING 0.1" x 0.6" WIDE - FITS WIDE 14P-DIP SOCKET
TEMP STAB: < +/- 2PPM -30 to +85 Deg C, < +/- 1PPM TYP 0-60 DEG C
OFFERS CONSIDERED FOR 5 OR MORE PCS
