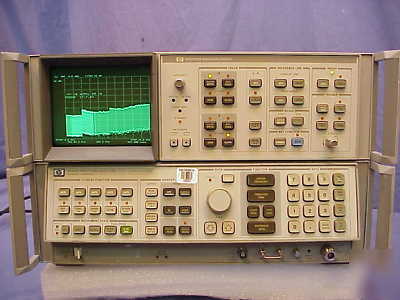

Hp 8566B spectrum analyzer freq. 100HZ-22GHZ **tested**
This is a "TRUE B" not an upgraded A version. Bright Sharp CRT & Works Great.
This item has been ExtensivelyTested in our Lab and it works great!.
Sold with a 7 day inspection/return privilege if not happy
The 8566B is a versatile, high-performance, 100 Hz to 22 GHz, microwave spectrum analyzer for bench and ATE use.
The exceptional frequency stability of the 8566B permits measurements with a 10 Hz bandwidth. This narrow resolution
bandwidth yields noise levels as low as -135 dBm. Excellent frequency stability, sensitivity, and frequency reference
accuracy combine to allow very accurate measurement of small signals in the presence of large ones. Multiple traces
can be displayed to measure residual FM or drift, or to conduct real-time surveillance over a wide frequency range.
Analyzer control settings can be saved in non-volatile memory. Complex measurement routines can be created on
an external controller, stored in the analyzer's user RAM, and executed using a single custom softkey.
* 100 Hz to 22 GHz, to 325 GHz with external mixers
* 10 Hz resolution bandwidth
* Amplitude range -134 to +30 dBm
* 100, 120/200, 220, 240 Vac; 50-60 Hz operation
* Weight: 112 lb; Size: 425 mm (16.8 in)W x 279 mm (11.0 in)H x 599 mm (23.6 in)D
Accessories included: Both Rear Interconnect cables (HP manufacture), 50 ohm load. N to BNC adapter,
BNC to BNC test cable, , front SMA 50 Ohm termination. 3- Rear BNC to BNC jumpers,
PSA Series high performance spectrum analyzer. It's as if our item offered has
If you have any questions feel free to e-mail us and we will do our best to respond,
however, no technical support will be provided by the seller. All statements regarding
products and their configuration are made to the best of ourability, and with the
