Fire-lite ms-5024 (package)


note: The whole system is in working condition when it was removed from the bank building and never been tested since. the system was removed stored carefully for possible reused!!

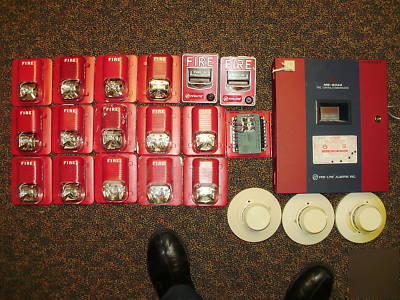

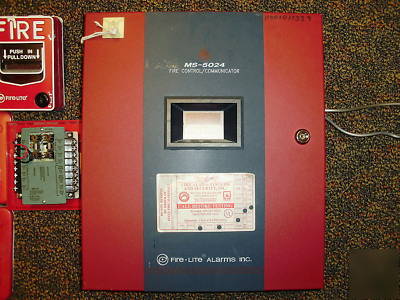

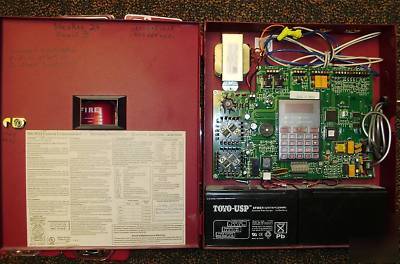

1 FIRE-LITE MS-5024 FIRE CONTROL/COMMUNICATOR

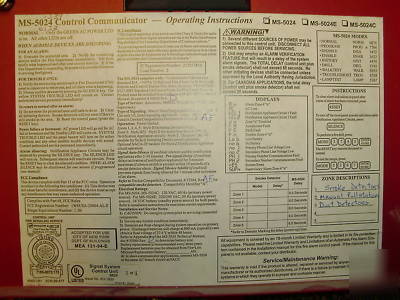

4-manual, attached to the unit door
pickup location: 2601 W sample RD Coral Springs, FL 33067
* Five programmable Initiating Device Circuits (zones). Each zone may be programmed for:
* Two-wire smoke detectors.
* N.O. contact devices (pull, heat).
* Four-wire smoke detectors.
* Auto-reset supervisory operation.
* Two built-in, Class B (Style Y) Notification Appliance Circuits (NACs).
* Notification Appliance Circuits may be programmed:
* Non-Silenceable (a strobe circuit can keep flashing after the panel is silenced).
* Auto-Silence (program 5 to 30 minutes).
* Silence Inhibit (60 seconds).
* Coding (March Time, Temporal, California).
* 3.0 Amps of Notification Appliance power.
* Two built-in, fully programmable, Form-C relays.
* Dual-line rotary- or Touch-Tone -dial DACT interfaces to public telephone network (leased phone lines are not required).
* Built-in voltmeter measures:
* Primary AC line voltage.
* Notification Appliance Circuit(s) voltage.
* Resettable 24-volt power.
* Surface Mount Technology (SMT).
* Fully programmable via built-in keypad (no costly external programmers necessary).
* Complies with NFPA 72 (Local, Central Station and Remote Station [DACT only not polarity reversal] Fire Alarm Systems).
The Fire-Lite MS-5024 is a 24-volt, five-zone fire alarm control panel with built-in communicator. The integral communicator transmits event information (alarms, troubles, supervisories, faults, etc.) to a UL-Listed central station. The MS-5024 may be used in a variety of cost-effective applications, including: local fire alarm control panel (communicator disabled), fire alarm control panel/communicator, stand-alone sprinkler supervisory communicator or slave communicator to a UL-Listed host fire alarm panel (requires N.O. dry contacts to trigger five channels). Selectable transmission formats allow the MS-5024 to communicate to virtually all central stations.
