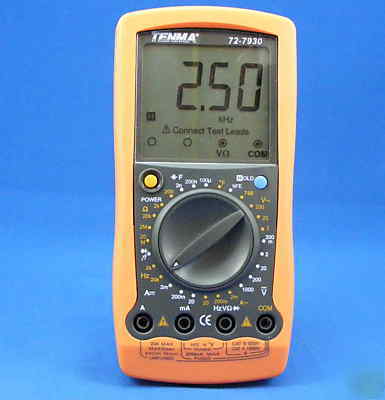

Digital multi meter / tester tenma 72-7930 -63-2830
- Large Multi Function Display - 3 1/2 Digit (1999)
- AC Voltage Range 2V/20V/200V/1000V - Accuracy (0.8% + 3)
- DC Voltage Range 200mV/2V/20V/200V/1000V - Accuracy (0.5% + 1)
- AC Current Range 2mA/200mA/20A - Accuracy (1% + 3)
- DC Current Range 2mA/200mA/20A - Accuracy (0.8% + 1)
- Resistance Range 200 /2k /20k /2M /20M - Accuracy (0.8% + 1)
- Capacitance Range 2nF/200nF/100 F - Accuracy (4% + 3)
- Temperature Range -40 to 1000 F (Fahrenheit Only) - Accuracy (1% + 3)
- Frequency Range 2kHz/20kHz - Accuracy (1.5% + 5)
Dimensions (WxHxD) 88 x 179 x 39mm
- Multi-Purpose Socket (For Transister and Capacitance Test)
- K-Type Thermocouple Piont Contact Temperature Probe
(Suitable For Temperatures upto 440 F)
