Step up dc converter voltage regulator 18V power supply

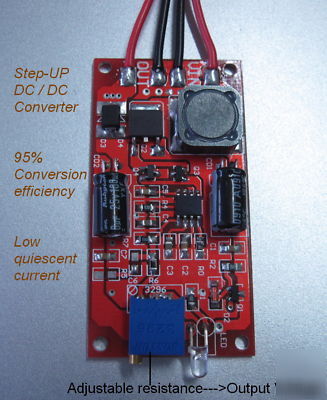

95% coversion efficiency Step-UP DC / DC converter
* This is a professional adjustable Step UP DC-DC Voltage Vonverter
* Dimension: 58 x 30 x 7.8 mm ( 2.3x1.2x0.3 inch L*W*H )
* Output Voltage: 15 - 20 V ( adjustable )
* Maximum Current: 2 A ( 40W )
* efficiency: 93 - 95 % ( very HIGH, low heat power )
* Wire according to drawing. Do not reverse polarity & short-circuited
* We provide technical, if you have any question, please contact me. I will reply your message in 24 hours.
used as the input/output electrolytic capacitor, the inductance made in Taiwan, the ceramic capacitor is made by Fenghua, and the chip resistor is made by Uniroyal (Taiwan).
