Custom 2 well steam table (electric) by atlas metal

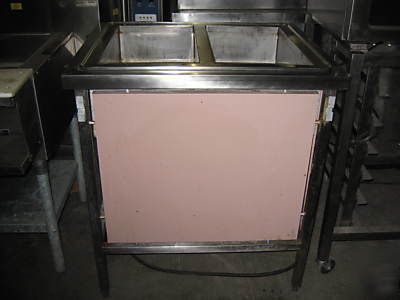

The item you are looking at is a Custom 2 Well Electric Steam Table by Atas Metal.
This came out of a working Hotel Restaurant that was remodeling the buffet line area and was in use up to point of removal. This unit was Fully Tested and is Excellent Working Condition!!!!
New this retails for over $1,500. We are selling this at a fraction of that price.
This is an incredible deal for anyone looking for a top of the line Steam Table for their Restaurant at a great price.
Overall Dimensions: 34" W x 27" D x 36" H
Individual Well Temperature Controls
The WIH series hot pan is an electrically heated drop-in serving unit that provides the convenience on individually controlled hot food wells, designed for standard 12" x 20" steam table pans. The pan construction enables the unit to be used either wet or dry (with or without water in the pan).
The entire hot is efficiently insulated and provided with a factory applied gasket so that it can be installed in the finest wood fixtures without marring the counter top. All controls are pre-wired to a single cord and plug.
TOP: Constructed of 18 gauge, type 304 stainless steel, die stamped with a raised perimeter bead. There shall be a solid vinyl gasket under the beaded edge to form a seal to the counter top, thus preventing seepage or marring of the counter top.

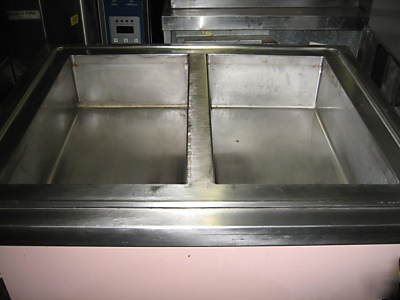

HOT FOOD WELLS: Individual hot food wells shall be 18 gauge type 304 stainless steel, one piece construction, all welded, ground and polished to a uniform finish. All corners are coved with a minimum 1/4" radius. Each well is provided with an 850 watt heating element
INSULATION: The pan is fully insulated with high density polystyrene, 1" thick on all sides, 2" thick on the bottom and enclosed with a 22 gauge galvanized steel outer liner. The entire unit is removable without the use of tools.

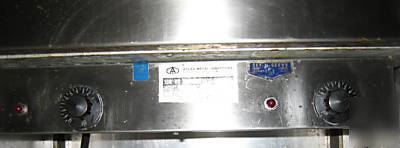

ELECTRICAL: The unit is provided with an individual thermostat control with a pilot light for each well. All heating elements and controls are pre-wired, and a 6' long, 3-wire cord and plug is provided, extending from the control box located under the unit, on operator's left. Available for single phase power only.
* Efficiently insulated to retain heat - protects fixtures and saves energy
* Individual thermostat controls - the operator can control the temperature of each well separately
* Factory applied gasket - makes installation a snap and seals units to the counter top
* Accommodates standard 12" x 20" pans, or fractional size pans
* NSF certified; UL recognized
