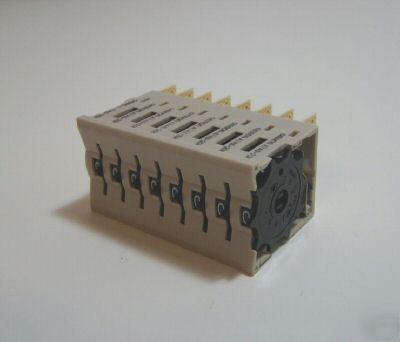

Omron thumbwheel switch A7AS-206
DESCRIPTION: THUMBWHEEL SWITCH.
Mounting Method: (2) Snap In (front mounting)
Output Code Number: (06) Binary Coded Decimal Output
Switching capacity (resistive load)
50 VAC or 28 VDC 1 mA to 0.1 A
* Between non-connected terminals:
* Between terminal and non-current carrying part:
10 to 55 Hz, 1.5-mm double amplitude
Ambient temperature (with no icing)
* Operating: -40 C to 85 C Storage: -40 C to 85 C
http://ecb.omron.com.sg/pdf/switches/thumbwheel/A7AS.pdf
