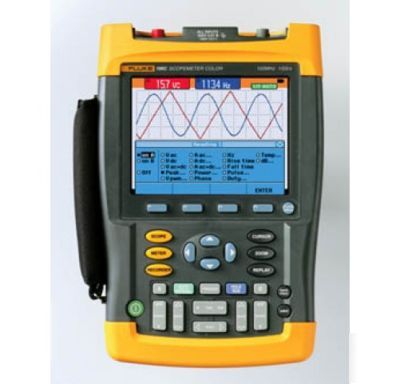

New fluke 196C scopemeter - ** ** - msrp $3229
* BC190/803 Battery Charger/Line Voltage Adapter
If needed we can Calibrate for an additional $99.99 a $189.99 service
ScopeMeter 190C Series: Speed, performance and analysis power.
See More, Fix More with Color
With the high performance specifications usually found on bench oscilloscopes, plus the large high resolution color screen, the new Digital Persistence mode, and a much faster display update rate, the Color ScopeMeter Series brings a new dimension to working in the field.
* See what's really happening
* Deeper Waveform Acquisition Memory
* Easier identification of traces, everywhere
* See dynamic signal behavior instantaneously
* Automatic capture and replay of 100 screens
* Use TrendPlot to help find intermittents, fast
* Deep memory for high-resolution ScopeRecord
* Measure from mV to kV - fully isolated and safely!
* Frequency Spectrum Analysis
* Waveform Pass/Fail Testing
* Cursor-limited automatic measurement
The ScopeMeter 190C and 190B Series offer up to 200 MHz bandwidth for capturing high-frequency signals found in today s state-of-the-art electronics. For less demanding applications, there are also 100 MHz and 60 MHz models. You still get the same advanced functionality without paying for bandwidth you don't need.
Deeper waveform acquisition memory
Easier identification of traces, everywhere
See dynamic signal behavior instantaneously
Automatic capture and replay of 100 screens
Use TrendPlot to help find intermittents, fast
Deep memory for high-resolution ScopeRecord
Measure from mV to kV - fully isolated and safely!
Cursor-limited automatic measurement
* Variable gain on channel A helps you compare signals on the two inputs.
* The Vpwm measurement is for measuring the effective rms output voltage of variable speed motor drives and frequency inverters.
* The high-sensitivity setting of 2 mV/div allows for measurements on low-level signals, that are hard to make with the average oscilloscope. (Fluke 190C)
* For medical imaging diagnostics or high resolution video applications, an optional configuration is available with current over time (mAs), high-resolution video triggering (up to 2800 lines) and more.
Fluke 19xC: 144 mm Full Color LCD
Fluke 19xB: 144 mm Monochrome LCD
Fluke 19xC: Yes, gives analog oscilloscope like waveform decay (user selectable)
Fluke 19xB: Persistence on/off
Fluke 19xC: Visual Reference and Automatic Pass / Fail testing
Fluke 19xB: Visual Reference
1200 points per input channel
27,000 points per input or more (5 ms/div 2 min/div.)
2 plus external / DMM input, all isolated from each other and from ground
Independently floating isolated inputs
Up to 1000 V between inputs, references and ground
Fluke 19xC: 2 mV/div. 100 V/div.
Fluke 19xB: 5 mV/div. 100 V/div.
Up to 3 ns using Pulse Width triggering; 50 ns peak detect at 5 ms/div. to 1 min/div.
Timebase range in Scope mode
Fluke 199C, 199B, 196C, 196B: 5 ns/div to 2 min/div
Fluke 192B: 10 ns/div to 2 min/div.
Connect-and-View , Free Run, Single Shot, Edge, Delay, Video Frame, Video line, Selectable pulse width and External
7 cursors measurements, 30 automatic measurements
A + B, A B, A x B, A versus B (X-Y-mode, giving Lissajous diagrams)
Start on Trigger, Stop on Trigger
Automatic, with Replay capability
5 more memories are made available upon registration of theScopeMeter
Two, each can store 100 scope screens, a ScopeRecord or a TrendPlot
5000 counts, Volts, Amps, Ohms, Continuity, Diode, Temp
Safety certified (EN61010-1)
1000 V CAT II / 600 V CAT III (instrument and included accessories)
Adapter / battery-charger included
25.6 x 16.9 x 6.4 cm (10.1 x 6.7 x 2.5 inch)
Using optional Optically Isolated RS-232 adapter / cable
3 years on main instrument, 1 year on the standard accessories
User's Manuals & Other Documentation
Getting Started (PDF, 700kB)
192, 196, 199, 196C, 199C Reference Manual
Reference Manual (PDF, 141kB)
