Hydroblend water powered coolant metering pump mixer

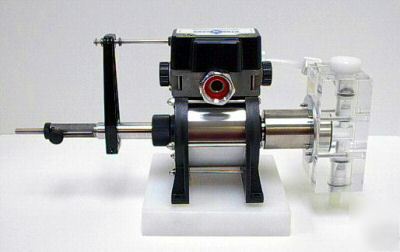

HydroBlend Precision Water Powered Coolant Metering Pump
HydroBlend 6000 Series Proportioning Pump
MODEL HB6180-AV 18 oz. pump with 1.40% to 12.30% mix ratios
Stainless steel valve block, outlet fitting, and main cylinder
Reduces chemical waste, improves proportioning accuracy, repeatable formulations, easy installation, and reliable operation
Water pre-filter included - 200 mesh/50 micron cleanable screen, garden hose fittings
Can be used with hose reels, in-line, and in central mixing systems
1 year warranty from date of sale
Proportional mixers are used to properly mix concentrates with water producing working solutions and make-up solutions. Typical applications for proportional mixing pumps are coolants, cleaners, strippers, degreasers, fertilizers, and fungicides.
Save labor by mixing faster than by hand
Automatic models save even more by keeping containers full unattended
More accurate than hand mixing
Safer because less contact with concentrates
Lean coolant mixtures can cause excessive tool wear, corrosion on parts and machines, and increased bacteria growth
Rich coolant mixtures can cause sticky or slippery residues, operator irritation, and waste expensive concentrate
Lean cleaner mixtures won't perform as intended
We carry two types of proportional mixers
Venturi types use water passing over an orifice to create suction that draws the concentrate from the container and mixes it with the water. Concentration is controlled by either changing orifice size or turning a metering valve. These units can not operate with any back pressure, so they can only be used to fill a pail or nearby container. Accuracy is also affected by water pressure and concentrate level.
Water Driven Pumps use water to drive a piston which pumps concentrate into a mixing chamber where it is mixed with the water. Concentration is not affected by water pressure or concentrate level, which makes them very accurate. These units can be hooked up in-line or to a hose reel and are typically used in central distribution systems.
Note: Plumbing codes in some areas may require a backflow preventer or other types of controls before the mixing system. Also, it is always recommended (and required for the warranty) to install a screen filter before the mixer.
