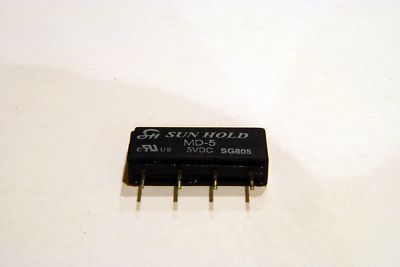

5V 10MA sip reed relay
Up for sale 1 pcs. of brand new, 5V, 10mA Reed Relay.
Coil Resistance (ohms) (+/- 10%): 500ohms
Nominal Current (mA) (+/- 10%): 10mA
Pull In Voltage (VDC): 3.75V
Drop Out Voltage (VDC): 0.8V
Max. Allowable Voltage (VDC): 15V
Contact Resistance: 150mohm Max.
Dielectric Strength - between coil & contact: AC 1500V (1min)
Dielectric Strength - between contact: AC 250V (1min)
Insulation Resistance: 100Mohm Min.(DC 500V)
Life Expectancy Mechanically: 100,000 ops. Min. ( 0.5A 20VDC , 0.1A 100VDC, 0.5A 20VAC, 0.1A 100VAC, resistive load 1200 ops./h)
Life Expectancy Electrically: 50,000,000 ops. Min. (5VDC, 10mA, resistive load 1200 ops./h)
Rated Carrying Current: DC 20V 0.5A, AC 20V 0.5A, DC 100V 0.1A, AC 100V 0.1A
Max. Allowable Voltage: DC 100V, AC 100V
Max. Switching Power: 10W, 10VA
Max. Switching Voltage: DC 200V
Max. Switching Current: 0.5A
