22"/30" x 120" profitmaster gap bed engine lathe, 1990S

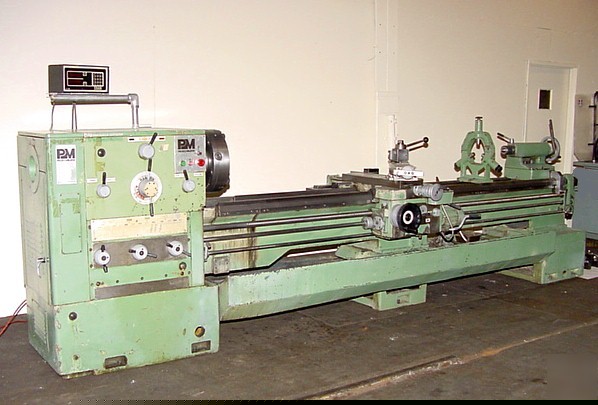

22"/30" x 120" PROFITMASTER GAP BED ENGINE LATHE, 1990s
22"/30" x 120" PROFITMASTER GAP BED ENGINE LATHE
MODEL: 22x4x120, S/N: 3SA3P240, NEW: 1990'S
SWING OVER BED ........................... 22-13/16"
SWING OVER CROSS SLIDE ................... 14-15/16"
SWING OVER GAP ........................... 30-5/16"
DISTANCE BETWEEN CENTERS ................. 120"
SPINDLE SPEEDS (15) ...................... 20 - 1250 RPM
HOLE THRU SPINDLE ........................ 4-1/8"
SPINDLE NOSE ............................. D1-8" CAMLOCK
LONGITUDINAL FEED RANGE .................. .0015 - .118"
CROSS FEED RANGE HALF OF LOGITUDINAL SETTING
THREADING - INCH ......................... .5 - 160 TPI
THREADING - METRIC ....................... .5 - 160 MM
QUILL TRAVEL ............................. 7-7/78"
APPROX WEIGHT ............................ 9,500 LBS
APPROX DIMENSIONS ........................ 15'8"L x 4'5"W x 51"H
