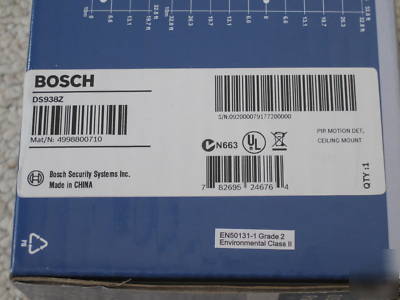

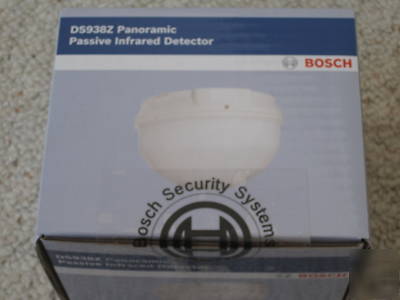

Bosch DS938Z panoramic pir motion detector ceiling mnt
Features listed below. Here is a link to the product data sheet:
http://resource.boschsecurity.com/documents/DS938ZAndZX938Z_DataSheet_enUS_T1491211531.pdf
360 x 18 m (60 ft) diameter pattern
2.5 m to 6 m (8 ft to 18 ft) mounting height
These ceiling mount, 18 m (60 ft) panoramic PIR Detectors
use Motion Analyzer II processing to reduce false alarms.
ZX938Z Panoramic Detector with POPIT
Several unique self-test features, including Motion Monitor,
provide coverage integrity. Field replaceable mirrored
optics allow them to be mounted on ceilings from 2.5 m to
6 m (8 ft to 18 ft) in height.
Motion Analyzer II uses multiple thresholds and timing
windows to analyze timing, amplitude, duration, and
polarity of signals to make an alarm decision. It will not
alarm on extreme levels of thermal and illumination
disturbances caused by heaters and air conditioners, hot
and cold drafts, sunlight, lightning, and moving headlights.
Provides three sensitivity settings.
PIR supervision provides trouble output in the event that
Switch-selectable four or thirty day Motion Monitor
supervision timers provide the detector with the ability to
verify that there is a clear view of the protection area and
Three externally visible high output alarm LEDs visible from
any angle, flash to indicate trouble condition. Internal noise
voltage test pins provide precise pattern location and
background disturbance evaluation using a standard analog
