28X48" rail lead screw cnc router kit plasma laser mill

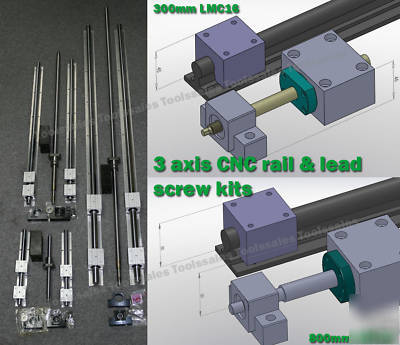

CNC Kit Mechanical 28"x 48", 8 Z height for CNC Router Plasma Laser Mill builder
The lead screw mounting block is the most critical part to control accuracy and the smoothness operation of your machine, various lead screw mounting method lead to wide degree of performance difference.
We DO the hard parts, so you have easy to design component!
Out kit provide you both the RAIL and the LEAD screw SAME mounting HEIGHT.
LMC16 x 300mm rail and bearing total mounting height 45mm
EK/EF12 lead screw bearing mount and preload nut mount block total height : 45mm
LMC20 x 800mm rail and bearing total mounting height 50mm
EK/EF15 lead screw bearing mount and preload nut mount block total height : 50mm
LMC25 x 1400mm rail and bearing total mounting height 60mm
EK/EF15 lead screw bearing mount and preload nut mount block total height : 60mm
All lead screw are machine to precision and ready to be install to your system.

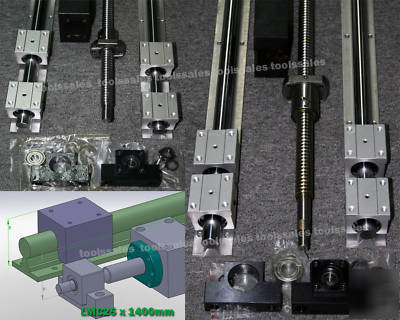

LMC-16 Rail with ball bearing + aluminum housing for easy flat level mounting
Industrial practice lead screw mounting method. Double angular high precision Japanese bearing ( see drawing)
Both end support lead screw support for stable high speed operation
Heavy duty Steel lead screw block for easy mounting
Custom machine Steel bearing support block for easy mounting
20mm heavy duty lead screw, 5mm/rev pitch distance
Ball bearing lead screw preload nut
LMC16 x300mm supported rail x 2 rail
LMC20 x800mm supported rail x 2 rail
LMC25 x1400mm supported rail x 2 rail
LMC16 bearing block with pillow, direct mount on flat surface x 4 pc
LMC20 bearing block with pillow, direct mount on flat surface x 4 pc
LMC25 bearing block with pillow, direct mount on flat surface x 4 pc
1605 lead screw with preload nut for 200mm rail length x 1 set
2005 lead screw with preload nut for 800mm rail length x 1 set
2005 lead screw with preload nut for 1400mm rail length x 1 set
EK 12 double ball bearing lead screw mount with lock nut x 1 set
EK 15 double ball bearing lead screw mount with lock nut x 2 set
EF12 leadscrew end bearing support x 1 set
EF15 leadscrew end bearing support x 2 set
Custom 45mm height preload nut mounting block x1
Custom 50mm height preload nut mounting block x1
Custom 60mm height preload nut mounting block x1
Other Size available upon request.
