Wasino wildcat gear head toolroom lathe 22 x 50 japan
** A NICE USED WASINO Wildcat 22 x 50 Precision TOOLROOM LATHE **
SEE ALL THE TOOLING THAT COMES WITH THIS MACHINE
* ORIGINAL CONDITION ( - CLEANED & RECONDITIONED BY US ** But not re- painted **-)
* WELL CARED FOR - GREAT HEAVYSHOP MACHINE - OR PRECISION TOOLROOM USAGE
* COMPLETE WITH ACCESSORIES - CHUCKS- TOOLING - & D R O

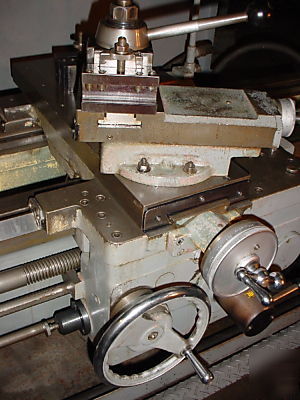

* ALORIS CA TOOL POST WITH 4 HOLDER SET INCLUDED
* PRICED for JAPANESE QUALITY and FOR THE CONDITION AND TOOLING
(1) Slotted Face Plate 14" Included
(1) 10" 3 Jaw Chuck - 2 piece jaws and Hard & Soft Jaws Included
(1) 14" 4 Jaw Independent Chuck Included
(1) Inch & Metric Threading Included
(1) Aloris CA Quick Change Tool Post and 4 Holder Set Included

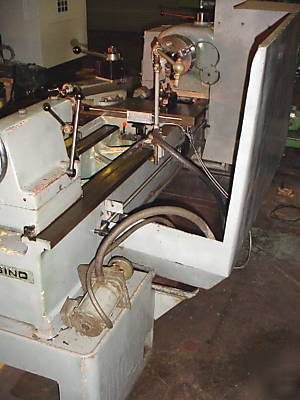

(1) Coolant Pump and Hoses Included

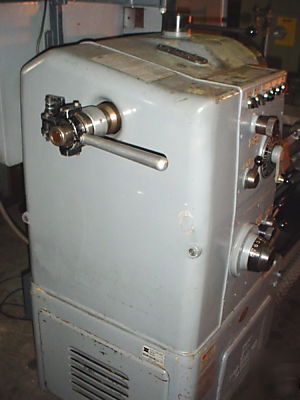

(1) 5C Lever Type Collet Closer Included
(1) ** NEWALL 2 Axis Digital Readout System, Installed Included

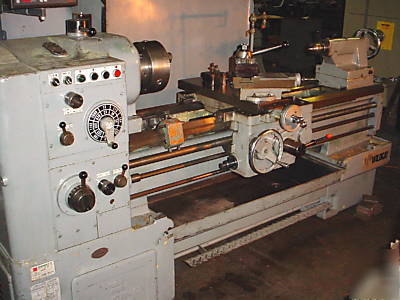

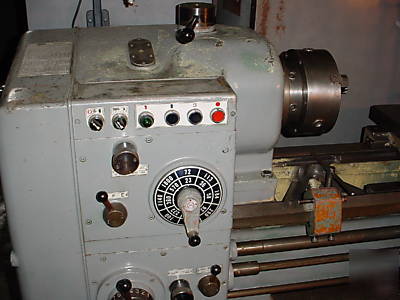

(1) Used, WASINO Model WILDCAT / LEO 22 Heavy Duty Precision Gear Head Toolroom
( sold new in 1981 / toolroom usage ) with 22" x 50"cc Capacity, equipped with all present features and tooling as stated below:
* Large-D1-6 spindle with three supported anti-friction bearings.
* Universal Inch / Metric Gearbox.
* Forced lubrication to Headstock and Carriage .
* Carriage Mounted Lever for start / stop and foot brake for machine operation.
* Swing over cross slide 13 3/8"
* Distance between centers 50"cc
* Spindle diameter at front bearing 4.53"
* Diameter of hole in spindle 2.125" ( 2 1/8" )
* Number of spindle speeds ( 16 )
* Range of spindle speeds 23 - 1800 RPM
* Taper in spindle Morse Taper No 6
* Taper of center Morse taper No. 4
* Type of spindle nose D1-6 Camlock Spindle
* Range of longitudinal feeds per revolution 0.0017" ~ 0.012" /rev
* Range of cross feeds per revolution 0.0009" ~ 0.006" /rev
Inch threads 4 - 28 TPI ( 24 threads )
Metric threads 1 7.0 mm ( 19 threads )
* Cross slide travel 11.625"
* Spindle Motor ( 75 Amp Breaker ) 10 HP
with Hard Top Jaws & D1-6 Camlock Mount

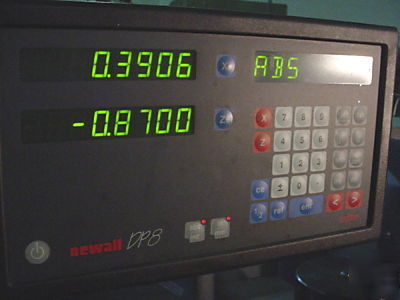

Model DP-7 2 Axis Digital Readout System
- - Reads in 0.0002" Dia. / 0.0001" Rad. Cross slide - - 0.0002" Longitudinal
* Adjustable Bed-Carriage Stop
* Aloris CA Type Tool Post with 4 Holders
* Electrics 220 / 3 / 60 HZ ( 440 volt available optionally )
* A Real Quality Japanese Toolroom Lathe
