Sadelco television field strength meter minimax M800

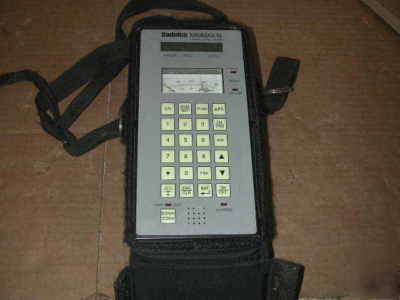

Sadelco Television Field Strength Meter
Sadelco Television Field Strength Meter Minimax M800
Used, tested, working Field Strength Meter
No leads. Internal batteries not warranted.
Manual here: Manual for the Sadelco MiniMax M800
* MMDS power supply 18V power for downconverters
* Easy-to-read microammeter for antenna orientation
* Accurate under all conditions internal white noise generator. Guarantees + 1dB accuracy, + 0.5 typical.
* Easy to operate fast digital tuning - auto ranging - digital display - favorite channels
* Built to last, sealed all-weather keypad - metal housing - padded nylon bag - new neverbreak "F" connector
* C/N and hum check picture quality
* Electronic shut-off save battery power and increases time between charges
EIA (NTSC), HRC, IRC, AIR-VHF, UHF, FM, PAL and Custom Channel Plans available on request.
Will distinguish 2 FM signals of similar amplitude 300 KHz apart.
Measurement Range: -20 + 40 dBmV (+40 to +100dBuV)
Amplitude Accuracy: + 1.0 dB at 77 F
Each measurement computer corrected for level, attenuator setting and temperature
+ 0.25 dB, 4.5 - 864 MHz white noise source
Digital LCD: Indicates channel, frequency and signal level in dBmV (switchable to dBuV)
Analog Microammeter: Indicates real time signal level for easy antenna orientation, + 1.5dB.
Range: 20 dB computer corrected
Input: 75 ohm, user replaceable F81 connector, BNC available on request.
Power Out: Built-in battery provides switchable 18V at F connector for powering downconverters
C/N: range > 50 dB with external preselector
Hum: 0.5 - 5%, + 0.3%, detects all hum up to 600 Hz.
Automatically calculates and displays difference between picture and audio levels of same channel.
Adjustable volume, waterproof mylar speaker.
Switchable lights for both LCD and Microammeter
Shows battery voltage and elapsed time
Built-in NiCads provide >16 hours of normal intermittent use
Electronic Shut-off: User adjustable, 5 min, 10 min or continuous
Measures average power of QAM signals
Weight: 4.5 lbs (2Kg) including case & batteries.
220/240 Volt AC Charger: Part# T60E
