> Panasonic wv-BP124 b/w camera 1/3CCD, 570TVL, .06 lux a

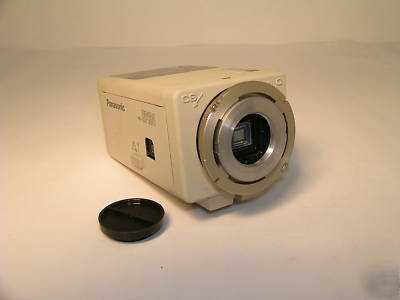

Panasonic wv-BP124 b/w camera 1/3CCD, 570TVL, .06 lux a
CONDITION: OPEN BOX- LOOKS NEW-GUARANTEED TO WORK PERFECTLY

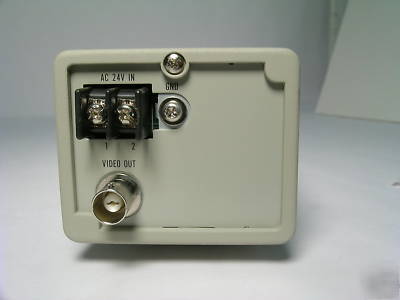

B/W Camera 1/3CCD, 570TVL, .06 Lux at f/1.2, 24VAC
Panasonic presents advanced CCTV technology to meet the demand of new and ever-changing applications. The 1/3" CCD Digital Signal Processing Black and White WV-BP330 Series Cameras deliver outstanding high-quality pictures as well as versatile digital functions and system integration capability. The WV-BP330 Series cameras incorporate a 1/3" interline transfer type CCD (380,000 pixels: effective) and achieve high sensitivity of 0.008 fc (0.08 lux) at F1.4, outstanding 570-line horizontal resolution and signal-to-noise ratio of 50 dB. With its advanced performance and expanded flexibility, the WV-BP330 series camera meet you specific needs with an affordable cost/performance ratio.
* 1/3" CCD pick-up element with 768(H) x 492(V) pixels provides a high 570 lines of horizontal resolution.
* A vertical digital 2H enhancement improves signal strength at the horizontal and vertical edges to provide a crisper image.
* Knee circuit effectively expands the dynamic range when viewing brightly illuminated objects.
* Outstanding 50 dB signal-to-noise ratio.
* Minimum scene illumination of 0.008 fx (0.08 lx) at F1.4
* An advanced Electronic Light Control (ELC) enables the use of inexpensive fixed iris lenses for cost effective systems.
* Gen-lock capability for system expandability, and other synchronization modes (Line-Lock, VD2, Internal
