Norcal pneumatic seal viton in line valve ilvp 100-am

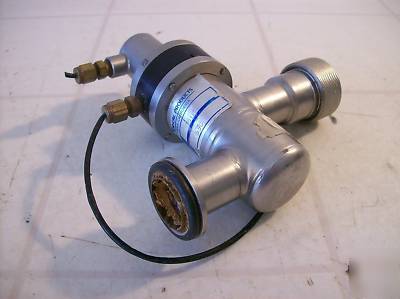

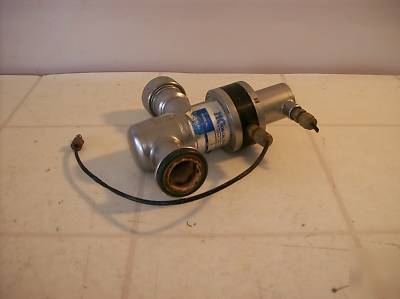

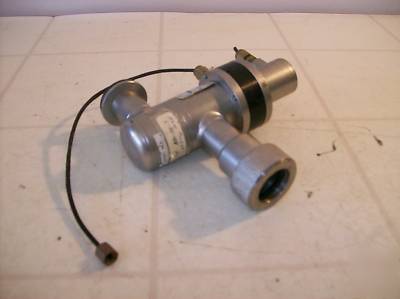

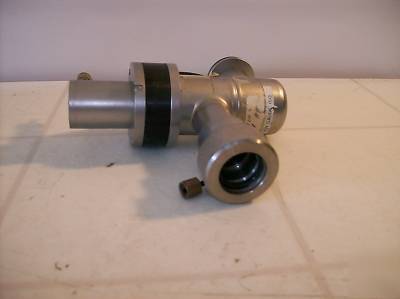

NORCAL PNEUMATIC VITON SEAL IN LINE VALVE
Body: Electropolished 304 stainless steel
Bellows: Welded AM-350 stainless steel
Other O-ring compounds available
3/8 to 2 inch ODs: Air-to-open, spring-to-close
2 1/2 to 4 inch ODs: Air-to-open, air-to-close
Operating pressure: 60 to 80 psig
Maximum 20 psia across valve seat
Maximum temperature with Viton seals
Viton bonnet seal: >=1 x 10^-9 Torr - High Vacuum
Copper bonnet seal: >=1 x 10^-10 Torr - UHV
Options: Fittings, O-rings, air solenoids,
Thermal: Heater jackets and controllers available for all valves.
