Thk ball spline linear and rotary high precision

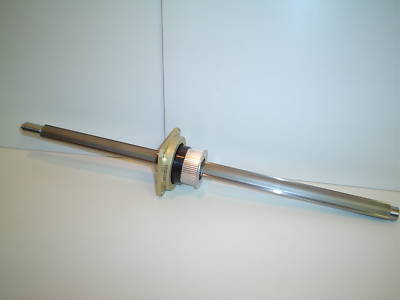

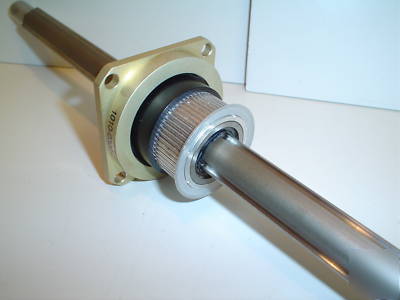

This is a THK 17 long linear spline that also has a rotary bearing set. This is from a new instrument and guaranteed in very good condition. The ends are ground to 14.70 mm and the spline section is 15.75 long. The rotary drive is fitted with a THK sealed Radial bearing #RB3010UUCOS. The rotation section has a 38mm diameter X 2mm pitch timing pulley. If you have a linear stage design that also has a secondary mechanism that must function when the stage is in motion, this is the perfect way to jump start that design. Width of the timing pulley is 16.3mm.
