Stevens water tank level recorder f # 68 45767

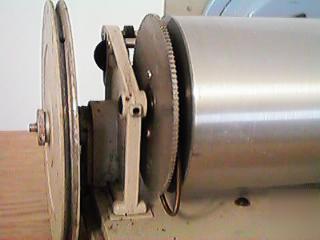

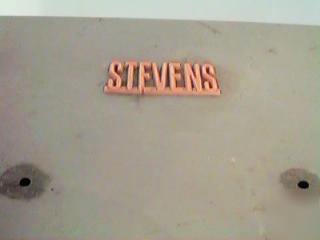

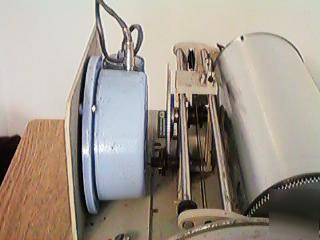

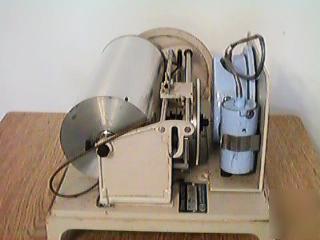

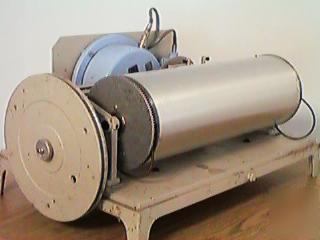

Picture is of the actual unit you will receive.
Manufactured by: Leupold & Stevens Incorporated ( Hach Hydromet and Tyco / Greenspan Technologies )

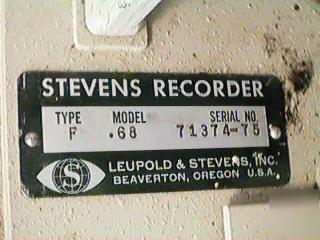

Model # 68 , Type F , Serial # 71374-75 , PN # 45767
The Stevens Type F Chart Recorder is a portable recorder that provides a continuous water or tank level record in graphical format. The Type F is used either as a primary device or as a very reliable backup instrument to record water or tank level. A single chart can provide up to 32 days of continuous level recording.
The Type F chart recorder's real-time graph shows the water level against a record of time. The range of chartable water level is limited only by the length of the float line and float size. The Type F is often used simultaneously with electronic data loggers. The Stevens A/F Encoder or SDI-12 Encoder can easily by attached directly to the Type F to transmit water level measurement to a data logger or used for transmission of water level or flow information.
Features of the Type F Chart Recorder:
* A true real-time, immediate charted measurement
* Long-term unattended operations
* Highly accurate and permanently records the varying levels of any liquid surface without electronic processing
* Ideal in areas with high lightning potential

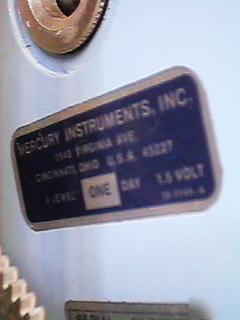

This listing has the following items pictured and included: Clock, Drum and all items pictured.

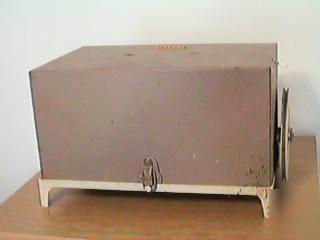

It is missing the top carrying handle as you can see in the picture.
Please note if you purchase more than one of these recorders, each has different configurations and options.
The only items included in this sale for one unit, are the items in the pictures and nothing else.
All manuals and installation instructions are downloadable from the mfg. website
This was very exspensive new so this is a great deal.
