Genie z-45/25 articulating boom lift aerial platform

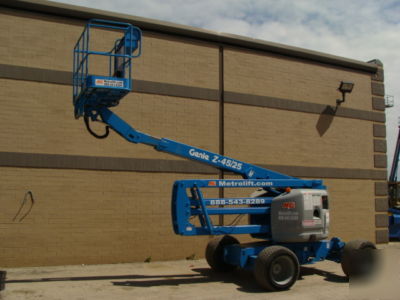

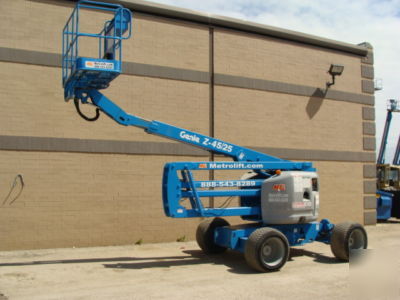

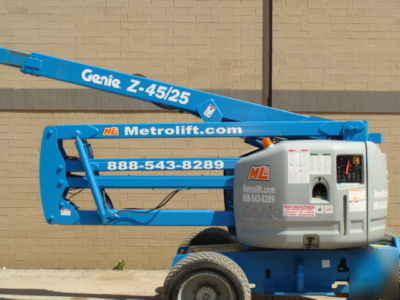

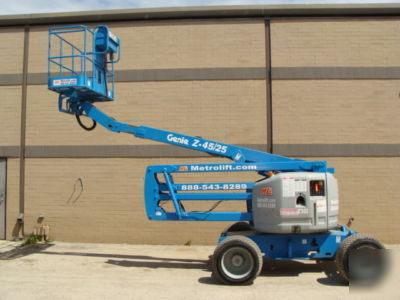

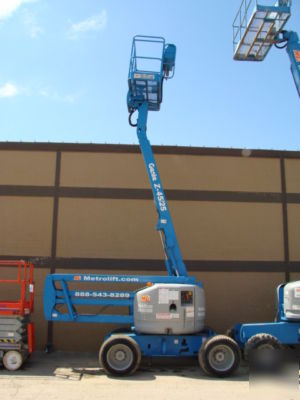

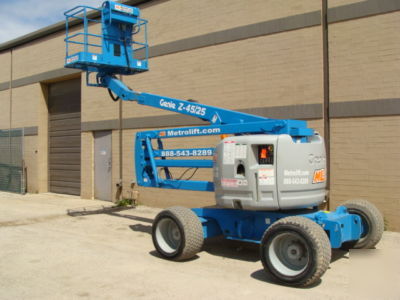

Genie Z-45/25 Articulating Boom Lift Inspected and Work Ready
Serviced and Inspected by our Genie trained mechanics
Working height maximum 51 ft 11 in 16.00 m
Platform height maximum 45 ft 11 in 14.00 m
Horizontal reach maximum 25 ft 7.62 m
Up and over clearance maximum 23 ft 6 in 7.16 m
Platform length 2 ft 6 in .76 m
Height - stowed 6 ft 11 in 2.11 m
Length - stowed 18 ft 3 in 5.56 m
Ground clearance - center 1 ft 3.5 in .39 m
Turntable rotation 355 non-continuous
Drive speed - stowed 5.0 mph 8.0 km/h
Drive speed - raised 0.68 mph 1.1 km/h
Gradeability - 2WD - stowed 30%
Gradeability - 4WD - stowed 45%
Turning radius - inside 5 ft 6 in 1.70 m
Turning radius - outside 14 ft 9 in 4.50 m
Power source Ford DSG-423 4 cylinder gas/LPG 75 hp (56 kW)
Deutz diesel D2011L03i 3 cylinder diesel 48 hp (35.8 kW)
Perkins diesel 404-D22 4 cylinder diesel 51 hp (38 kW)
Hydraulic tank capacity 24 gal 90.8 L
Fuel tank capacity 17 gal 64.4 L
For Add l Information About This Lift Or Any Questions Call or Email Dean @ ****@metrolift.com or (630)514.9449
