21.25" swg 80" cc mazak slant turn 40 atc/mc cnc lathe,
21.25" Swg 80" cc Mazak Slant Turn 40 ATC/MC CNC LATHE,
21.25" Swing 80" Centers Mazak Slant Turn 40 ATC/MC CNC LATHE, Fanuc 11T, 80 ATC, Tail., Chip, Stea

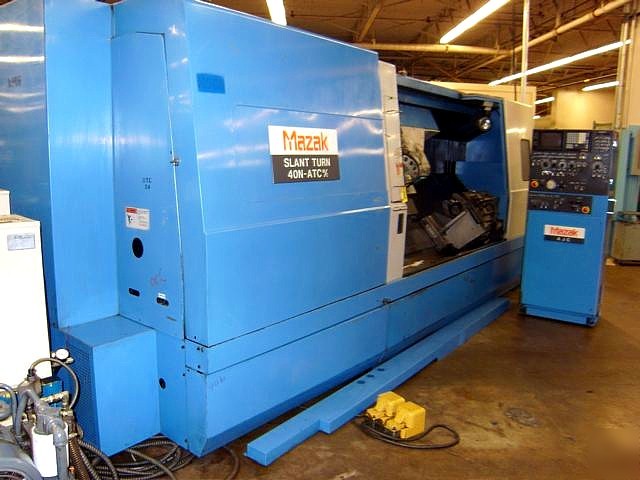

1989 MAZAK SLANT TURN 40N ATC MILL CENTER
MAX. SWING........................... 21.25"
MAX. DIAMETER OF SHAFT WORK.......... 14.5"
MAX. DISTANCE BETWEEN CENTERS........ 80.75"
SPINDLE NOSE......................... A2-8"
SPINDLE BORE/ BAR CAPACITY........... 3.15"/ 2.75"
SPINDLE SPEED........................ 6-3000 RPM
SPINDLE INDEXING..................... 360,000 POSITIONS
TYPE OF TURRET....................... 2 POSITIONS, 1 DEGREE
TOOL MAGAZINE CAPACITY............... 80 ATC
ROTARY TOOL SPINDLE.................. CAT 50
MILLING SPINDLE SPEED................ 20-3000 RPM
MILLING SPINDLE MOTOR................ 7.5 HP
RAPID TRAVERSE RATE (X&Z)............ 400 IPM
X-AXIS STROKE........................ 21.6"
Z-AXIS STROKE........................ 83.4"
BED SLIDE WAY WIDTH.................. 27.95"
DIA. OF TAILSTOCK QUILL/ CENTER...... 3.94"/ MT NO. 4
QUILL STROKE/ BODY STROKE............ 5" / 72.5"
MAIN MOTOR........................... 40 HP
MACHINE WEIGHT....................... 25,100 LBS
- FANUC 11T CNC CONTROL w/MANUAL PULSE GENERATOR
- PROGRAMMABLE CHUCK JAW CHANGER
- PROGRAMMABLE HYDRAULIC STEADY REST
