Parker daedal 12 inch dia. cnc rotary stage table

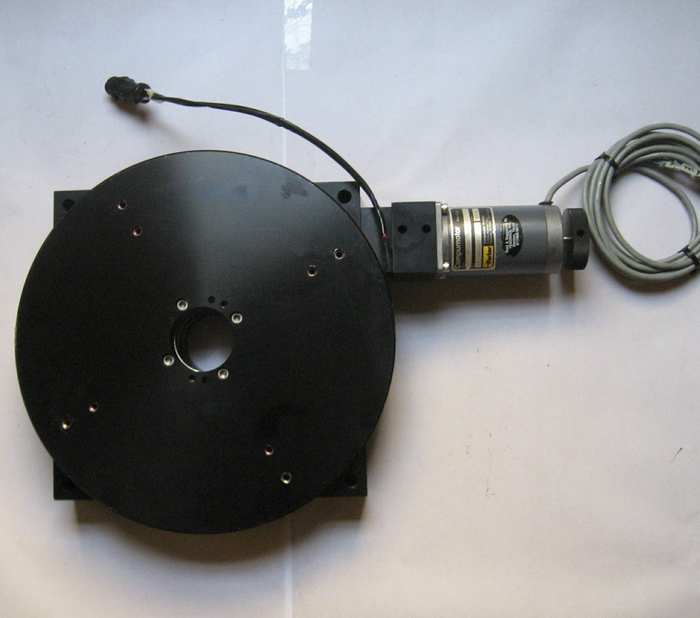

Parker Daedal 12" Diameter CNC Rotary Stage Table
Parker Daedal 12 Inch Diameter CNC Rotary Stage Table W/ Double Shaft Parker Compumotor Motor able to run in CNC mode or manual. Designed for optical and laser positioning the table is strong enough to be used for CNC micro milling and drilling. Parker Positioning Systems Daedal Division. Approx. dimensions (non including the motor and coupling house) 12 Diameter. Overall dimensions 18 X12 X3 . Model 21202-S Serial Number 89126812-1
Can run manual (has a turning knob see picture) or motorized with included NEMA 23 Parker motor. The motor is a Parker NEMA 23 A/AX57-102 Serial Number 71-006877-02 Code 8945 and is untested. The table is in good condition the attached picture is a generic picture this unit has few wither spots and small scratches not affecting at all the usage the table has no a noticeable backlash.
