Elmo hv-3000XG high res xga visual presenter 10X zoom

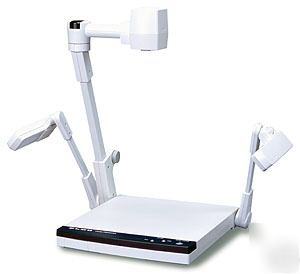

The Elmo HV-3000XG is a high resolution visual presenter with a built-in 10x optical zoom lens. The unit integrates two overhead florescent light units to illuminate text, flat art and three dimensional objects. Its camera head unit rotates completely to capture whatever objects your presentation may require just about anywhere they may be positioned. The lens has a 10x optical zoom with auto exposure and auto focus functions. It can be connected to computers via USB and/or RS-232C. Its on-screen display makes custom functions easy to control.
1/3" approximately 850,000 pixels progressive-scan CCD camera built-in.
True XGA (1024 x 768) resolution plus NTSC/PAL video output.
Analog RGB (XGA-60Hz) output to PLUS multimedia projector.
High performance 10x optical zoom with auto-focus and auto-iris.
Convenient rotating camera head and flexible lighting arms.
Supplied wireless remote control and mouse. (Not included)
Easy-carrying compact body of only 14lbs.
Digital interface USB and RS-232C ports.
Supplied data link software: "Imagemate for HV-3000XG" (Not included)
"On Screen Display (OSD)" settings.
15 frames-per-second image transfer rate.
Signal System: NTSC and PAL Systems
Lens: 5.8 to 58 mm, f/2.8 10x Optical Zoom
Number of Pixels: 786,000 Pixels
Horizontal Resolution: 400 TV Lines
RGB/ Analog Component- 15-Pin (x 1 input, 1 output)
Composite Video- RCA (x 1 input)
Power Requirements: 100 to 240 Volts AC, 50 or 60 Hz
Set Up Dimensions (WxHxD): 27.8 x 15.9 x 22.6 Inches
