Edsyn 1036 - PS542 vacuum - pressure soldering station

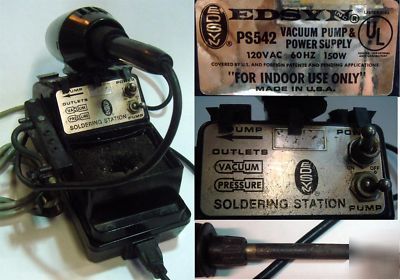

EDSYN 1036 - PS542 Soldering Station
* Edsyn 1036 LONER ATMOSCOPE Self-Contained SMT Hot Air Station with PS542 power supply,vacuum and pressure pump and single tip soldering tool. This is an older version of the 1036 that does not have the LED indicators on it's panel. However, it functions the same as the newer versions.
* This item is used, working and tested to heat, solder, and provide good vacuum and pressure.
1036 details from the Edsyn website
Self-Contained SMT Deluxe Hot Air Station
A versatile SMT hot air station that adjusts to either hot air or contact soldering techniques from the same station with the proper accessories.
Utilizes unique hot air tips for easier rework on Gullwings, J-Leads, PLCC s and small outline components
Uses LONER general purpose soldering tips for through-hole rework
Small hand tool is light and easy to maneuver
Air control valve allows precise airflow
Electronic circuitry provides fast heat up and improved temperature stability
Specifications for Model 1036
Power Requirements 120V, 60Hz
Temperature Range 400 F-800 F/205 C-427 C
Temperature Regulation 6 F/ 3 C
Leakage/Resistance < 2mV/< 2 ohms
Overall Dimension 4.1 W x 8.5 H x 9 D
Power Supply 4.6 lbs/2.1 kg
The model 1036 comes with a built-in air pump with air flow valve that generates 22"HG of vacuum. This station is perfect for lab-type settings where shop air is not available. With a helpful variety of hot air tips available you will find soldering with this station a breeze.
