Accura 04020D pittsburgh seaming machine lockformer

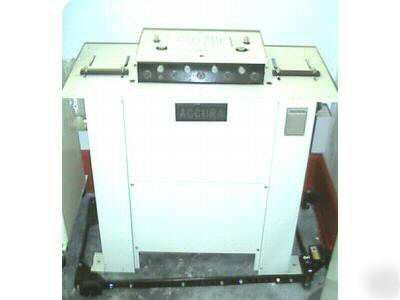

ACCURA PITTSBURGH SEAMING MACHINE
20 gage 1HP/1PH Model #04020D W/DRIVE CLEAT ROLLS
(PLEASE NOTE BASIC MODEL IS AVAILABLE IN ANOTHER LISTING)
Lockforming machine 20 gauge 1HP/1PH
PLEASE NOTE THIS IS OUR DELUXE MODEL WITH DRIVE CLEAT ROLLS INSTALLED ON THE OUTBOARD SIDE!!!
A super duty machine with hardened and ground forming heads plus hardened and ground shafts standard. Case hardened steel forming rolls and machine cut gears. Needle bearings throughout and welded steel cabinet with heavy plate top. V-belt drive and central grease fitting panel for easy maintenance.
20-26 gauge mild steel capacity uses approx. 1 of material
Width of hammer-over edge adjustable to 3/8

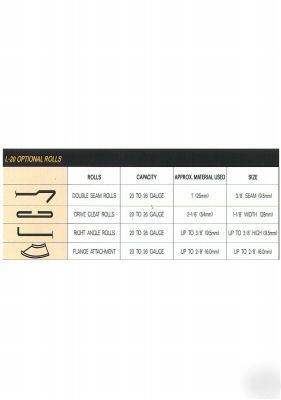

ADCR-020- drive cleat rolls; 20-26 gauge capacity; approx 2 1/8 (54 mm)material used;1" seam(25 mm) included outboard.
ADSR-020- Double seam rolls- 20-26 gauge capacity; approx. 1" (25 mm) material used; 3/8" seam (9.5 mm)
ALFR-020-right angle rolls; 20-26 gauge capacity; approx. up to 3/8 (9.5mm) material used; up to 3/8 high(9.5mm)
Also available: Top mounted auto guide power flanger-easy edger right angle
Model #ALFA-020 20-26 gauge capacity up to flange made
