> 8" w 20" l supertec stp-1022ADCII surface grinder, 3-ax
8" w 20" l supertec stp-1022ADCII surface grinder, 3-ax
8" W 20" L Supertec STP-1022ADCII SURFACE GRINDER, 3-Ax
8" Width 20" Length Supertec STP-1022ADCII SURFACE GRINDER, 3-Axis Automatic, 3 HP Spindle, Mitsubis
"NEW" SUPERTEC MODEL STP-1022ADCII
w/Mitsubishi PLC with LCD Touch-Screen Control

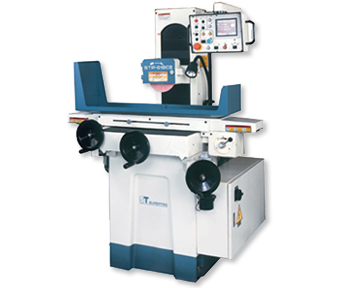

NOTE: PHOTO IS OF A SIMILAR MODEL
- The precision cartridge spindle is equipped with 4 of preloaded
class 7 (p4) super precision angular contact ball bearings to ensure
high accuracy and superior grinding finish.
- All guideways are Turcite-B coated and precisely hand scraped to
provide a smooth movement for better accuracy and longer way life.
better downfeed repeatability. (ADCII model only)
- Crossfeed mechanism incorporate with a precision leadscrew,
AC inverter provides smooth, accurate crossfeed and allows criss-cross
grinding for better workpiece finish.
- Hydraulics, coolant systems are separated from machine to eliminate
- All moving surfaces and rotating parts are continuously lubricated
maximum accuracy. An alarm light will illuminate if oil pressure drops
- Mitsubishi PLC control uses a menu-driven LCD touch screen is easy
to learn and easy to set. Simply fill in the blanks to set total
grinding amount, rough increment, fine increment, sparkout passes,
feeding direction, parking position, wheelhead retract distance, and
press cycle start to complete automatic grinding cycle.
Distance from table to spindle center: 6.3
Max. table load (include Chuck): 660 lbs
Standard magnetic chuck size: 8 x 20
Auto increment feeds: 0.02 - 0.32
Auto downfeed (ADCII): 0.0001 - 0.01
Wheel size: 8 x 7/8 x 1.25 (D x W x Bore)
Net weight (approx.): 2860 lbs
Gross weight (approx.): 3300 lbs
Packing Dimension: 73 x 58 x 84 (L x W x H)
- Electromagnetic chuck (8" x 20")
- Permanent magnetic chuck (8" x 20")
- Manual demagnetizer (for permanent chuck use)
- O.S. Walker ceramax permanent chuck (fine pole, 8" x 20")
- O.S. Walker LBP (fine pole, 8" x 20")
COOLANT SYSTEMS AND DUST COLLECTOR
- Coolant system (58L capacity)
- Coolant system w/mag. sep. & paper filter (20L/min, 80L)
- Combine coolant & dust collector
