Package — 30 hp nortrac tractor with front end loader

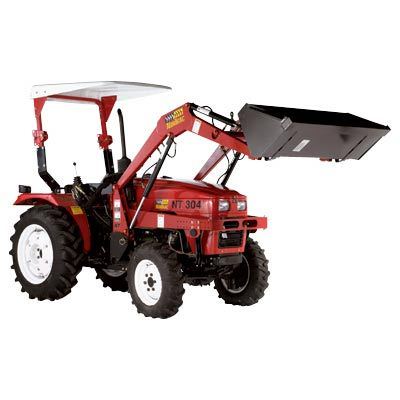

PACKAGE 30 HP NorTrac Tractor with Front End Loader
Versatile and easy to use, our new category 1, 30 HP tractor comes with a handy double stage clutch and three point hitch. Three cylinder, water cooled four stroke engine with a maximum 2000 RPM. Eight forward and two reverse speeds. 540/720 PTO speeds. 10ft. long with a ground clearance of nearly one foot. Front end loader features dual torque tubes with double welded areas to create a strong, rugged support to the loaders mainframe. 8ft.5in. lift height and 60in. bucket size. High tensile steel pedestal for years of use. High strength mounting brackets for load distribution and GB tractor mounted joystick provides permanent dual remotes for the tractor. Not available for sale in California.
* Min. Operating Weight (lbs. (kg)): 3,916 (1,780)
* Wheel Base (in. (mm)): 72 (1,833)
* Wheel Tread Width - Front (in. (mm)): 47.25 (1,200)
* Wheel Tread Width - Rear (in. (mm)): 45.3-57.1 (1,150-1,450)
* Front Axle Ground Clearance (in. (mm)): 11.5 (292)
* Tire Inflation - Front (PSI): 11.6-17.4
* Tire Inflation in Field - Rear (PSI): 11.6 to 17.4
* Tire Inflation in Transportation - Rear (PSI): 17.4 to 29
* Turning Radius (in.): 165.35
* Rated Traction Force (lbs.): 8.25KN/1,856
* Nominal Speed - Forward 1st (MPH (KM/H)): 1.11 (1.79)
* Nominal Speed - Forward 2nd (MPH (KM/H)): 1.41 (2.27)
* Nominal Speed - Forward 3rd (MPH (KM/H)): 2.29 (3.69)
* Nominal Speed - Forward 4th (MPH (KM/H)): 3.64 (5.85)
* Nominal Speed - Forward 5th (MPH (KM/H)): 4.74 (7.63)
* Nominal Speed - Forward 6th (MPH (KM/H)): 5.99 (9.64)
* Nominal Speed - Forward 7th (MPH (KM/H)): 9.75 (15.69)
* Nominal Speed - Forward 8th (MPH (KM/H)): 15.47 (24.89)
* Nominal Speed - Reverse 1st (MPH (KM/H)): 1.04 (1.67)
* Nominal Speed - Reverse 2nd (MPH (KM/H)): 4.42 (7.12)
* 3-Pt. Hitch Type: Category 1
* Lift Capacity (lbs.): 1,102.5
* Power Steering Pump Pressure (PSI): 2,262
* Power Steering Pump Volume (GPM): 12
* Engine Displacement (CI): 136
* Engine Type: Three cylinder, vertical, water-cooled, 4-stroke
* Engine Oil (gal. (qt.)): 1.587 (6.35)
* Front Drive Axle (gal. (qt.)): 1.75 (7)
* Transmission (gal. (qt.)): 4.75 (19)
* Hydraulics/Category 1 Hitch (gal. (qt.)): 2.12 (8.48)
* Radiator (gal. (qt.)): 1.85 (7.4)
* Standard 5ft. material bucket Lift capacity to full height: 1500 lbs.
* Breakaway capacity: 2900 lbs.
* Maximum lift height (ground to lower bucket pin): 8ft. 5in.
* Clearance with bucket dumped: 6ft. 7in.
* Reach at maximum height (front of tractor to front of bucket): 16in.
* Bucket rollback: 18 * Digging depth: 5in.
* Overall height in carry position: 4ft. 9in.
* Hydraulic control valve requirements: two spool selective control valve required for loader and hydraulic controlled bucket cylinders Lift and bucket cylinders: double acting
* Bucket control: hydraulic twin cylinders
* Bucket cylinder size: 2in. bore x 16 3/4in. stroke
* Lift cylinder size: 2in. bore x 22 3/4in. stroke
* Approximate weight with 5ft. bucket (less mounts): 629 lbs.
* *NEVER ATTEMPT FULL ROLLBACK IN RAISED POSITION WITH FULL BUCKET
