Laser precision ts-4320 p/g otdr reflectometer loaded
Laser Precision TS-4320 P/G OTDR Reflectometer LOADED

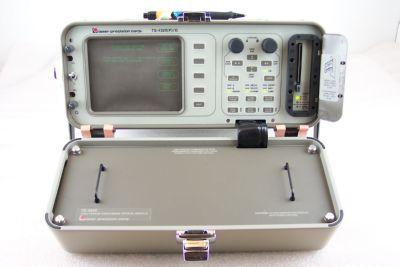

For Sale is a Good Condition Laser Precision TS-4320 P/G OTDR Optical Time Domain Reflectometer (Optical Fiber Test Set).
** CRT for information display
** Visual characteristic of fiber under test
** Singlemode or Multimode operation
** Softkey control allows for easy operation of equipment
** LED indicators on front panel for constant equipment status
** Programmable interface for remote operation
** Programmable interface for printer operation
** Keyboard for entering header data
** Self test confirms operational status
** Error messages define incorrect operating procedures
** Distance from origin measurement
** Distance between points measurement
** Loss between points measurement
This unit measures fiber optic cable and connector loss by analyzing the backscatter power detected at the launch end of the cable. Backscattering in a fiber optic cable, is the result of Rayleigh scattering and Fresnel reflections. Rayleigh scattering is caused by inhomongenities in the fiber cable. Fresnel reflections are the result of changes in the index of refraction at splices, connections, and fiber ends (i.e. broken cables, fiber ends).
This unit consists of an optical transmitter and receiver, central processing unit, data acquisition section, and a display.
** Laser Precision TD-261C 1300nM Multimode Optical Module
** Laser Precision TD-260C 850nM Multimode Optical Module
** Laser Precision TD-285C 1300nM/1550nM Singlemode Optical Module
Also included is: Uniplex model D150-12/24/28-110-60 Universal Inverter
