> 6" w 18" l gmc gmsg-618M hand feed surface grinder, rol
6" w 18" l gmc gmsg-618M hand feed surface grinder, rol
6" W 18" L GMC GMSG-618M Hand Feed SURFACE GRINDER, Rol

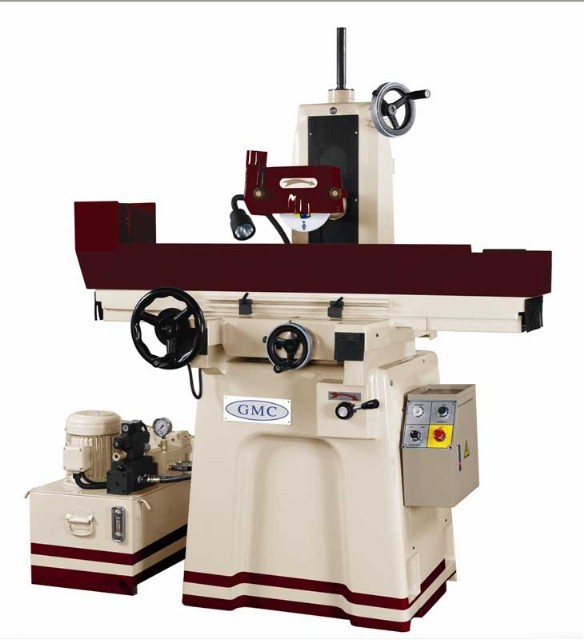

6" Width 18" Length GMC GMSG-618M Hand Feed SURFACE GRINDER, Roller Ways, 2 HP, Coolant System, Made
Precision Manual Surface Grinder
Model: GMSG 618M Made in Taiwan
Over 300 pounds table load capacity
Dynamically balanced spindle - run-out within 0.00008
(4) preloaded class 7 (P4) high precision angular contact
spindle bearings for high precision grinding
Table Size ( chuck size ) - 6 x 18
Grinding capacity, W x L - 6-1/4 x 18-3/4
Max. longitudinal manual table travel - 18-7/8
Max. cross manual table travel - 6-5/16
Cross handwheel graduation - 0.001
Cross handwheel per revolution - 0.2
Vertical downfeed handwheel graduation - 0.0002
Vertical downfeed handwheel per revolution - 0.05
Max. spindle centerline to table surface - 16-1/2
Spindle motor - 2 HP, 3-phase 230V or 460V
Coolant pump - 1/8 HP, 3-phase 8 GPM
Wheel size, Diameter x Thickness x Center Bore - 8 x x 1-1/4
Machine dimensions: L x W x H - 55" x 41" x 79
6 x18 standard permanent magnetic chuck # SMC-618
6 x18 fine pole permanent magnetic chuck # FPMC-618
Dust collector system for GMSG-618 & 818, part # DC-6818
2 axis NEWALL # C 80 DRO for GMSG-618, USA, installed, # NW-618M
Rotary phase converter, USA , 5 HP # R5-618M
