Electric strike door lock with wireless remote

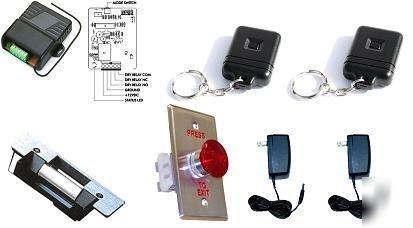

Electric Strike Door Lock with Wireless remote
(1) Electric Strike Lock Fail secure
(1) Seco-Larm Enforcer SL-SK-910R One Channel RF Receiver
(2) Seco-Larm Enforcer SL-SK-919TD1S Single Channel RF Transmitter
Electric Strike Lock Fail secure:
Fail secure door strike - secures door during power outage
Dimensions: 128mm x 32mm x 38mm (5.04" x 1.26" x 1.50"
Seco-Larm Enforcer SL-SK-910R One Channel RF Receiver:
* Compatible with all SECO-LARM transmitters.
* Use to control garage door opener, house lights, alarm control panel, or other devices via remote control.
* FORM-C dry relay contact (N.O./N.C./COMMON) output. Rated 10 Amps at 24 VDC.
* This revolutionary receiver incorporates:
- 1. Hi-Q SELECTIVITY and a CODING IC for rejecting unwanted RF signals.
- 2. HIGHER SENSITIVITY for greater operating distances.
- 3. UNSURPASSED ANTENNA MATCHING CAPABILITIES so the receiver is less affected by how and where mounted.
- 4. GREATER TUNING STABILITY so the receiver's frequency remains unaffected by shock and vibration.
* LED indicates RF reception, learn mode entered, transmitter learned, memory cleared.
* Mode switch for easy transmitter learning.
* Learns up to 15 transmitters.
* 4 Output modes (programmable): 4-Second momentary, 1-Second momentary, Toggle, Validity
(Validity: receiver outputs for as long as the transmitter button is pressed).
* Screw terminals for simple connection.
* Accepts SECO-LARM fixed code or CODEBUMP transmitters.
SECO-LARM CODEBUMP Technology
Be prepared for today's thieves with SECO-LARM's patented CODEBUMP technology. With CODEBUMP, so-called code-grabbers and scanners are rendered obsolete because the RF code changes every time the transmitter button is pressed. In addition, with over 18 quintillion (1.8 x 1019) codes, the chances of ever repeating a code are virtually non-existent. SECO-LARM's CODEBUMP transmitters and receivers are perfect for controlling garage and gate openers, car and home alarms, plus much more.
315MHz (SK-910R-4 - 433.92 Mhz also available by request)
68 billion codes (SK-919TD1S-UP, SK-919TT1S-BU, SK-919TDWS-BU, SK-919TD2A-UP, SK-919TP4J-NU, SK-919TP1H-BU, SK-919TP2H-NU, SK-919TP4H-NU).
18 Quintillion codes (SK-917T2A-U, SK-917TP4J-NU).
Number of Stored Transmitter Codes
Form C dry relay contact (N.O./N.C./Common); max 10 Amp at 24VDC
Programmable 4-sec. momentary (default), 1-sec. momentary, toggle or validity
5 Quick-connect screw terminals (+, -, with N.O./N.C./Common)
31/4" x 33/8" x 11/8" (83 x 85 x 28mm).
Seco-Larm Enforcer SL-SK-919TD1S Single Channel RF Transmitter:
* Over 68 billion (6.8 x 1010) possible codes.
* Sleek new case with flashing LED transmission indicator.
* Includes 12VDC alkaline battery with handsome key chain ring.
Primary: 120 Volt 60 Hz (Black Housings)
All 12 VDC models have A 6' line cord and center positive plug/individually boxed
12DC500, 12 VDC, 500 MA, 2.1 MM Coax. Plug, UL/CSA Approved
This illuminated button is mounted on a metal plate that can be secured to a wall near the door it effects. The wide operating temperature range makes it suitable for a number of environments.
Durable stainless steel plate
1M cycles min. rated switch life
Single pole NO/NC momentary contact switch
Contact rating: 300VAC/3A max.
Operation Temperature: -20 C ~ 55 C (-4 F ~ 131 C)
Dimensions: 120mm x 76.2mm x 82mm (4.72" x 3.00" x 3.23")
* Ensure that you strip all of the transformers.
* One transformer is for the wireless remote and the other one is for the mag lock.
* When installing the wireless remote to the mag lock, make sure you use 18/2 gauge wire.
* When installing the mag lock please make sure that the strike is not too tight. Keep the strike as loose as possible so it can make the proper contact with the lock.
* For further Install Instructions please take a look at the manuals provided below.
BEFORE PURCHASING, PLEASE MAKE SURE TO READ ALL THE MANUALS LISTED BELOW AND ASK ANY QUESTIONS THAT YOU MIGHT HAVE.
Manuals and Documentations(when available):
SK-910R USER MANUAL.pdf (118189 bytes)
How to code the transmitter.pdf (509619 bytes)
Typical Receiver Applications.pdf (14477 bytes)
Electric Strike Manual.pdf (278184 bytes)
