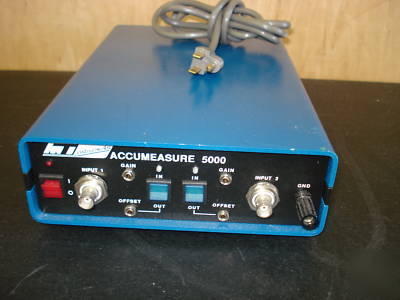

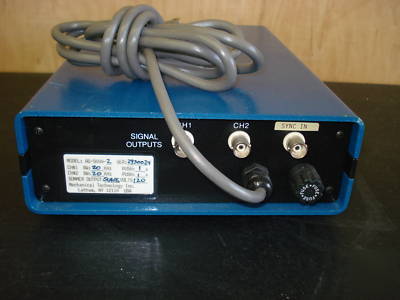

Accumeasure 5000
High frequency capacitive measurement sensor for displacement, vibration and runout measurements with nanometer accuracy.
High-Precision, Non-contact Displacement and Vibration Measuring System with Nanometer Accuracy
The advanced amplifier circuitry provides a frequency response from dc to 20 kHz with a corresponding noise level of 0.01 mV rms/Hz 0.5 The Accumeasure 5000 can be used with any of MTI's standard or custom designed miniature sensor probes for unmatched linearity, stability and resolution. The Accumeasure System 5000 is available in either single or dual channel designs. The dual channel model includes a summing amplifier for applications that require sum or difference measurements.
