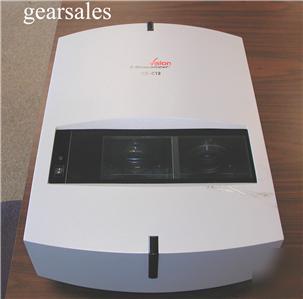

Wolfvision vz-C12 visualizer, ceiling mount
WolfVision VZ-C12 Visualizer, Ceiling Mount
A new trend in the design of conferencing rooms is hiding all technical appliances. High tech equipment should be present, but not seen. The perfect solution for this is a WolfVision Ceiling Visualizer. It can be mounted on a ceiling, just like a projector, or integrated into a suspended ceiling. There is nothing to be seen on the table/lectern and the view between the presenter and their respective audience remains undisturbed
Colorado residents pay applicable sales tax.
http:// /wolf/bro_profceiling06_e.pdf
Pictures per second (as picked up by the camera)
Effective pixel (=pixels actually used for image information)
Pixels processed per second (=effective pixels x frames per second)
Color reproduction / precision
very good colors (sRGB color precision)
Converted output signals (4:3 and 5:4)
SXGA (1280x1024), SXGA- (1280x960), SXGA+ (1360x1024), SVGA (800x600), PAL and NTSC
Converted Widescreen output signals (16:9 and 16:10 - older units may need a firmware update for this feature)
HD (High Definition) 720p and 1080p at 50/60Hz, WXGA, WSXGA+
Image Turn mode (for increased resolution when picking up large portrait pages)
Prog.Scan: 85, 75 and 60 Hz (switchable), PAL: 50 Hz, NTSC: 60 Hz
one-push-autofocus (focusing is rarely necessary due to high depth of focus)
Synchronized lightfield (for easy positioning of objects)
yes (in size of pick-up area of camera) with 4:3 / 16:9 switching
Live to Freeze comparison (on two monitors or screens with just one Visualizer)
yes (RGB, DVI and Preview outputs can output different signals. One can output a live image and another one a "freeze" image)
two telezoom lenses, 64x zoom (16x optical + 4x digital)
Max. object height on working surface
Max. pick-up area on working surface
depending on installation height
Max. pick-up area on working surface in Image Turn mode
as above with length and width values exchanged
Min. pick-up area on working surface (in full resolution, with optical zoom)
Min. pick-up area on working surface (with digital zoom)
Depth of focus on small object (42 x 33 mm)
Depth of focus on large object (360 x 270 mm)
Blinding of audience or speaker
2 pcs. standard halogen lamps (24V/150W)
Automatic lamp changer (with built-in spare lamp)
USB software for image capture and controlling
included (for Windows and Macintosh, Twain compatible, with video capture driver)
Time for still image capture through USB software
approx. 1/2 sec. (with fast PC and USB 2.0)
Reflection free area on working surface
3 (plus 8 fixed presets through RS232) and 3 presets of on-screen menu
Special working surface for transparencies
yes (special working plate included)
optional external lightboxes (extremely large models like WolfVision's LB-38 can be used)
External computer input / Input switch
Built-in digital scaler for the computer input
yes (processes the signal from computer input for all RGB-, DVI- and Video outputs)
"Show all" function (9 picture split-screen)
negative image / negative-blue image / black and white image
one (converted Prog.Scan), 4-pin
three (2x 15-pin D-Sub/VGA-plug and 5x BNC-plugs)
Ethernet/LAN port and advanced network features
yes, IP-addressable, 10/100 Mbps
RS232 port and serial protocol with position setting and status report
Dimensions in operation (L x W x H)
452mm x 352mm x 126mm (17.8" x 13.7" x 5")
