Vwr heated/refrigerated circulators 9006V2E circulators

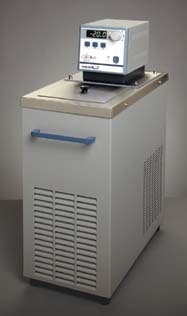

VWR Heated/Refrigerated Circulators 9006V2E Circulators With Standard Controller
VWR Heated/Refrigerated Circulators Circulators With Standard Controller is a reliable and dependable addition to the VWR Baths, Ovens, Incubators, and Cryogenics Storage family of products. Combining top-notch and uncompromising quality with an affordable price, the VWR Heated/Refrigerated Circulators Circulators With Standard Controller 9006V2E/ 13271-088 can fulfill your laboratory needs while still offering a great value for the money.
* Built-in Safety Cutoff for High-Temperature and Low-Liquid Level Protection
* VWR Two-Year Limited Parts and Labor Warranty
Ideal for direct immersion of samples or circulating through external systems. The standard controller features a two-speed pressure pump and an easy-to-set temperature encoder with three user-set presets to allow for rapid setpoint change. The analog controller features accurate, proportional temperature control and includes a thermometer for temperature readout.
The 6L (1.6gal.) baths provide precise, stable temperature control down to 20 C ( 4 F). The 21cm (81/4") wide footprint helps conserve precious bench space. Baths have a cooling capacity of 200W at 20 C (68 F), 140W at 0 C (32 F), and 100W at 10 C (14 F).
Energy-efficient 13L (3.4gal.) baths combine high heat removal with a large reservoir and work with temperatures as low as 40 C ( 40 F). Model 1150S has a cooling capacity of 660W at 20 C (68 F), 480W at 0 C (32 F), and 100W at 30 C ( 22 F). Model 1190S has a cooling capacity of 680W at 20 C (68 F), 450W at 0 C (32 F), and 160W at 30 C ( 22 F).
The 28L (7.4gal.) baths are for immersing large numbers of samples. The large capacity of this reservoir helps compensate for unexpected heat load changes. The large bath opening allows convenient access and has a large workspace on top. Baths have a cooling capacity of 700W at 20 C (68 F), 510W at 0 C (32 F), and 260W at 20 C ( 4 F).
The 120V models are CSA certified. The 240V models are CE approved.
The general-purpose clear bath algicide is compatible with stainless steel and helps keep water baths clean, odor-free, and resistant to black algae. One 237mL (8oz.) bottle treats approximately 757L (200gal.). Supplied in a plastic dispenser bottle. Use the concentrated bath cleaner for cleaning and removing rust and minerals deposits from stainless steel and plastic baths. Bath cleaner comes in 473mL (16oz.) bottle; 29.6mL (1oz.) treats approximately 7.6L (2gal.).
The high-temperature tubing is 0.9m (3') of flexible fluoropolymer resin-lined, stainless steel overbraid tubing with 6.4mm (1/4") NPT quick connects on both ends. For use at elevated temperatures. Maximum temperature: 300 C (572 F).
The Dynalene HC 50 heat transfer fluid provides superior thermal stability for high or low temperatures. Fluid has a temperature range of 53 to 60 C ( 63 to 140 F), a 56 C ( 68.8 F) freezing point, and a viscosity (in centistokes) of 3.6 at 0 C (32 F) and 15.1 at 40 C ( 40 F).
Note: Heat transfer fluid is incompatible with Buna or natural rubber.
Ordering Information: Includes lid; 0.6m bypass tube; male inlet/outlet tubing adapters for 0.95cm (3/8"), 0.64cm (1/4"), and 0.48cm (3/16") tubing; and 1.8m (6') cord with standard U.S. plug on 120V models; or three cords (European, British, and Swiss) on 240V models. Other country-specific plugs are available; contact our sales representative. Ethylene glycol is available at vwr.com.
Specifications for VWR Heated/Refrigerated Circulators 9006V2E Circulators With Standard Controller :
Working Access,L x W x D, cm (in.):
Case Dimensions,H x W x D, cm (in.):
Stability (Standard Controller):
Stability (Analog Controller):
Readout Accuracy (Standard Controller):
Heater, For 120V, 60Hz Models:
Heater, For 240V, 50Hz Models:
Heater, Pump Inlet and Outlet:
In addition to the VWR Heated/Refrigerated Circulators Circulators With Standard Controller 9006V2E/ 13271-088, we carry a full complement of Baths, Ovens, Incubators, and Cryogenics Storage as well as other product offerings from VWR. We also carry a full line of VWR accessories to help meet your laboratory and scientific needs.
For a complete selection of VWR Baths, Ovens, Incubators, and Cryogenics Storage, please visit our VWR page. For more brand name Baths, Ovens, Incubators, and Cryogenics Storage please visit our Baths, Ovens, Incubators, and Cryogenics Storage store section. To see our complete line of lab, medical, industrial, and scientific products, please see our science and lab equipment online catalog.
