Marsh inst. co. J1640 gen serv gauge 0-15PSI/0-100KPA

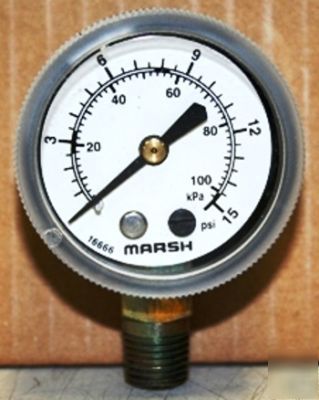

Marsh Instruments Co. J1640 General Service Gauge 0-15PSI / 0-100kPa
* Dial Sizes: 11 2", 2", 21 2", 31 2" & 41 2"
* Superb quality, economical price
* Pressure ranges to 5000 psi
Marsh Instruments General Service Steel Case Gauges are an economical, general purpose gauge for pressure measurement from vacuum/compound through 5,000 psi. Suited for use with water, oil, air, gas, or other non-corrosive media. Typical applications include FRLs, compressors, pumps, boilers, regulators, dryers as well as commercial and industrial equipment.
* ACCURACY: ASME Grade B 3/2/3% ( 2% of range across middle half of scale)
* CASE STYLE: CB Center Back Mount
* TUBE & SOCKET: Copper alloy
* RANGES: 0 to 15PSI / 0-100kPa
* DIAL STANDARD: Dual scale psi and kPa
* DIAL COLOR: Black markings on white
* POINTER: Aluminum, black painted
* WINDOW: " acrylic, twist-in Clearlok
