> Heise 901A digital pressure indicator ±0.07% 0-30 psig

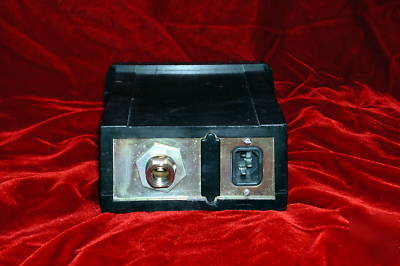

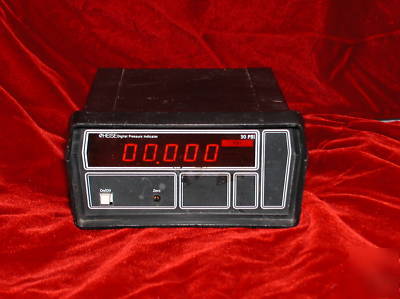

Heise 901A digital pressure indicator ±0.07% 0-30 psig
has a good complete full display and passes its power on test.
applied fs pressure and it seems to read right.
The models 901A and 901B digital pressure indicators offer unique features including ranges to 30,000 PSI, LED display, remote sensor and analog output options. Other available features include engineering unit select, mix/max recall, Hi/Lo set point, tare and digital outputs. With full span accuracies of 0.07% (901A) and 0.035% (901B), the 901 provides precise, reliable pressure measurement combined with a customized set of optional features.
Accuracies: 0.07% and 0.035% F.S.
Broad media compatibility: any liquid or gas compatible with 316 SS and 718 Inconel
Ranges: 0-50 in.H2O through 0-30,000 psi
Gauge, vacuum, compound, absolute and barometric
NIST traceable certificate of calibration
4-20 mA, 0-5 Vdc or 0-10 Vdc analog output
Remote sensor (up to 20 feet)
20 F to 120 F temperature compensation (standard is 45 F to 95 F)
9/16-18 UNF-2B female connection (for 1/4" O.D. high pressure tubing) (standard above 5,000 psi)
Handle with Potentiometer Adjusting Tool
