Johnson level & tool elect self-leveling rotary laser

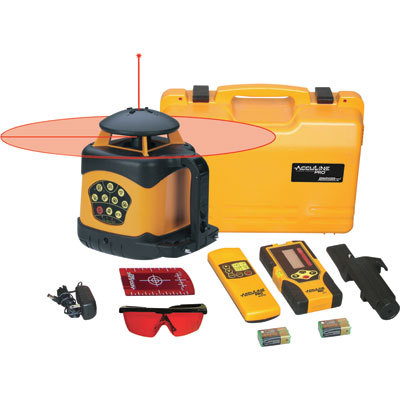

Johnson Level & Tool Elect Self-Leveling Rotary Laser
The Self-Leveling Rotary Laser Level features automatic-leveling vertical plane and horizontal beam as well as automatic-leveling horizontal plane and plumb-up beam. Electronically controlled slope feature, plus range scan provides two chalk line widths and single point plus electronic rotation control. Application: Construction, concrete work, deck building, landscaping, Range (ft.): Exterior: Up to 2,000ft. dia. w/ detector; Interior: Up to 200ft. dia., Rotation Speed: 120, 500 RPM, Accuracy: 1/16in. @ 100 feet, Battery Type: Rechargeable battery pack, 6V adapter or C batteries, Battery Included: Rechargeable battery pack & 6V adapter, Laser Output: 5mW, Tripod Mount Dimensions (in.): 5/8in. - 11 center screw thread Integral vertical mount Leveling method: Automatic (Electronic) Laser wavelength: 635nm 10nm (Red) Laser classification: Class IIIa Accuracy: 1/16in./100ft. ( 1.5mm/30m) Interior range: Up to 200ft. diameter (60m) depending upon light conditions Exterior range: Up to 2000ft. diameter (600m) with detector Remote range: Up to 200ft. diameter (60m) Slope: 8 Auto-leveling range: 5 (delivers alarm if beyond range and stops rotation simultaneously) Power supply: 4 C alkaline batteries (not included), rechargeable Ni-MH battery pack, or 6V adapter (included) Battery life: Approximately 15 hours with rechargeable battery pack, 20 hours with alkaline batteries Dimensions 5.75in. x 7.75in. x 7.625in. (146 x 197 x 194mm) Working temperature: 14 F to 113 F (-10 C to +45 C) Scanning Modes: 0 , 30 , 60
