Short wire dc gear motor steel gearmotor for heavy work
Instead of the normal 6 inch leads with crimped connectors, one of the leads is cut back to 3 - 4" long. This was from a recent test. The motor was never stressed, just run on the bench. It's new and fully guarranteed. There are only 3 at this special price.

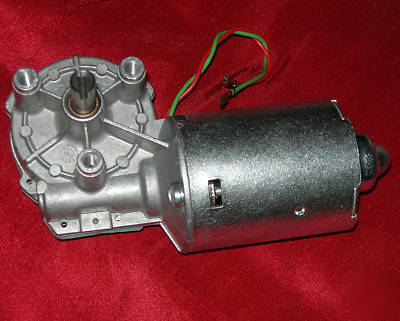

Dewert Heavy Duty Motor, part number 000.002.016
This is NOT a cheap windshield wiper motor!
Apply power, it turns. Reverse the leads, it turns the other way.
And careful trying to stop it - the torque is fantastic!
An extra strong geared motor for larger robot and mover projects
Clean, 100% tested, no tarnish, original label
All steel geartrain no plastic to soften at high loads
Gearbox is sealed and lifetime lubricated
Never used, it's been in dry, clean storage for a few years.
Widely used by members of the B9 Robot Builders Club for buildingtheir FULL SIZE (6 ft tall) "Lost in Space" replica 'bots
Quoting from the b9robotbuilders.com website:
"These motors have been used successfully by other members for torso rotation, treadsection drives, bubble lifter, arms and hip animation. Extremely versatile"
Operating Range 6 - 24 volts DC at 1-2 amps
Permanent magnet DC, continuous rotation
Rotates either direction and can be used with speed controllers
Overall Length motor and geartrain 6-1/2 inches

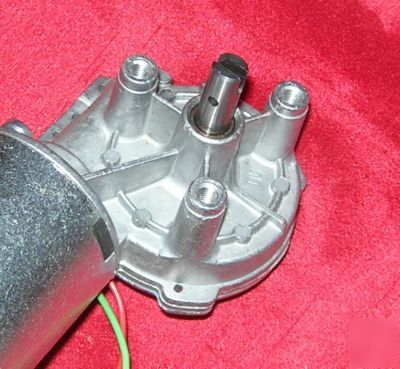

Shaft diameter - 10mm - just a bit more than 3/8 inch
- hardened steel shaft comes with a slot and a fixing pin hole so you
can easily clamp it to your own high torque loads - see photo
- shaft fits a 3/8" pulley or sprocket that's been slightly opened up with a drill
3 mounting holes - metric M6 x 16, 1.00 pitch (bolts at Lowe's etc.)
U.S.A. ONLY - sorry - because of the weight, no other countries.
