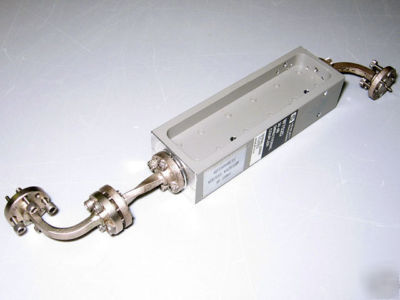

Agilent hp W752D directional coupler 75-110GHZ WR10
HP AGILENT W752D DIRECTIONAL COUPLER 75-110GHZ WR10
The Agilent W752D coupler is designed with split-block technology, and provides greater than 33 dB directivity. Split-block designs are used to assure greater precision in machining the ultra-small internal dimensions required by the 26.5 to 110.0 GHz waveguide. The split block units are equipped to interface with the precision circular cover flanges with matching alignment pins common to those applications.
Each coupler is swept-frequency tested to ensure that the main guide SWR and directivity specifications are accurate. Performance characteristics are unaffected by humidity, temperature and time. This makes these units especially useful in microwave "standards" measurements.
