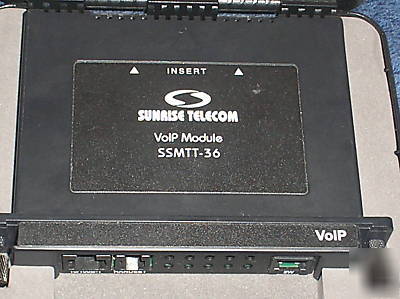

Sunrise telecom mtt voip sip H323 test module ssmtt-36
Module is in great shape and we will offer a 30 day warranty on it. This module sells for $2500 NEW
The VoIP Module offers a comprehensive suite of tools for installing and troubleshooting Voice over IP systems. Includes 10/100 Ethernet and POTS
Additionally, the VoIP Module also supports basic analog POTS testing.
* IP Phone emulation for SIP and H.323
* Measures voice quality, including MOS and R-Factor
* VoIP traffic and signaling analysis
LAN Interface: Ethernet 10Base-T/100Base-T with RJ-45 connector
Chassis built-in microphone/speaker
Network Interface and IP Support
10Base-T, 100Base-T, and auto-sense 10/100Base-T Ethernet
Automatic link status reporting
Static IP or auto-IP address through DHCP
PING tests with configurable packet size and test counts
Trace Route displays hop count and traced IP addresses
DHCP Client and DNS client support
H.323 version 4: Supports Fast Connect
Supports RAS with H.323 Gatekeeper
SDP support in session negotiation
Configurable codec preference list
Supports H.323 IP phone simulation through a Gatekeeper or directly
to a H.323 phone by IP address
Supports SIP IP phone simulation through a Proxy server or directly
Speed dial feature enables one key dialing
Call setup and tear down messages decoding
Receive and transmit voice packet counts, call statistics with jitter,
drop, lost, replay, DTMF, and silent packet counts
Voice Quality Measurement (SWMTT-36VQM)
Monitors voice packet impairment factors
Reports voice quality MOS in a call
Conforms to ITU-T G.107E model
Transmit Frequency Measurements
Range: +10 dBm to -40 dBm (600 ), +8 dBm to -40 dBm (900 )
Fixed frequency from 50 Hz to 20 kHz
Frequency Sweep: Programmable Start/Stop Frequency, Step Rate,
and Step Increment with programmable frequency skip
3-Tone Slope: 404 Hz, 1004 Hz, and 2804 Hz
Receive Frequency Measurements
Range: +10 dBm to -70 dBm (600W), +8 dBm to -70 dBm (900W)
Programmable Flash duration from 300 to 1000 ms
Dial Method: DTMF, MF, and Dial Pulse
Dial Signals (Digits): 0 to 9, * and #
Line Hold Circuit: DC Resistance approximately 200
Caller ID with Number, Name and Timestamp
Module Size (WxLxH): 5.0 x 3.5 x 0.9 in (12.6 x 9 x 2.2 cm)
Operating Temperature: 32 to 122 F (0 to 50 C)
Storage Temperature: -4 to 158 F (-20 to 70 C)
Humidity: 5% to 85% noncondensing
