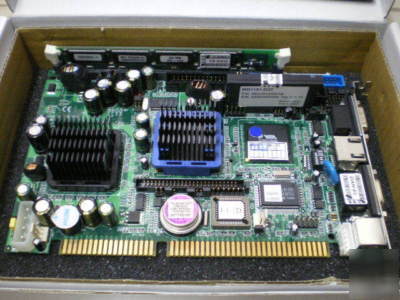

Single board industrial controller EX96238 via eden esp


VIA VT8606/686B chipset + EDEN ESP7000 733MHz CPU
VIA VT8606/686B chipset + EDEN 400/733/800MHz CPU,
low-power fanless 192K L1/L2 Cache, 100/133/133 FSB,
PC133 SDRAM, AGP-4X SMA LVDS/TFT/DSTN LCD/ CRT,
ATA100 IDEx2, LANx2, Audio, COMx4, RS-422/485, Parallel,
PC/104, WDT, USB, IrDA, CF-2, DOC, Single +5V, ATX signal,
Hardware monitoring, I2C, Digital-IO; Optional Touch Panell
Key Specification/Special Features:

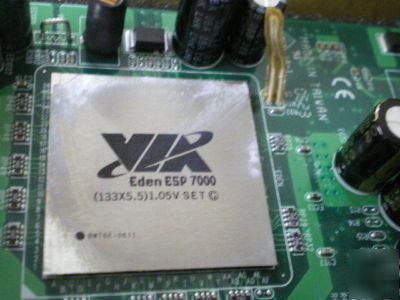

CPU:P-III class VIA Eden ESP ESP7000 400/533/667MHz low-power fanless CPU, 3W/5W, 128K L1 cache & 64K L2 cache, 100/133 FSB,

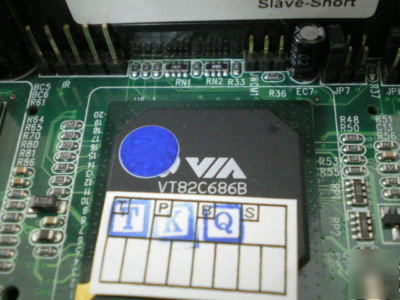

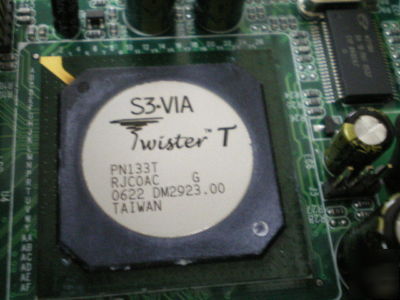

System chip: VIA VT8606 (PN133T Twister-T) & VT82C686A/B
Cache: 128K L1 Cache & 64K L2 Cache built in CPU
BIOS: Award/AMI BIOS, 256KB (Flash) EPROM
DRAM: 1 x 168-pin DIMM socket support memory up to 512MB PC133/PC100 SDRAM/ VCM-SDRAM
AGP-4X LCD/ LVDS/ CRT: AGP-4X Savage4 3D/2D LVDS/TFT/DSTN LCD/CRT W/ 8M~32M SMA memory
(share system memory as display memory), support 1600x1200 TFT/DSTN/LVDS (2-channel 110MHz) LCD & 1920x1440 2D/3D CRT
DVD: Hardware-Assisted MPEG-2 architecture for DVD full-screen video playback
100/10M LAN: Realtek 8139C 100/10M LAN ( or Intel 82559 100/10M)
CompactFlash I/II socket: CF-2 socket for IDE Flash Disk, or, IBM 1.8" MicroDrive 340MB/1GB HDD
USBx2 and IrDA: USB and IrDA pin header on board
Optional Audio: AC97 Audio signal pin on board
Temperature/fan monitoring: 686B on-chip function
CMOS Backup: Backup by Li battery
PS/2 Keyboard & PS/2 Mouse: DIN & pin header
ATA100/66/33 IDE Port x 2: Up to 4 x IDE devices
FDD: Two 3.5" or 5.25" FDD or LS120
Parallel Port: Bi-directional SPP/EPP/ECP port
Serial Port x 2: RS-232 x 1 + RS-232/422/485 x 1(+5V/+12V Power Output in Pin1 or Pin9)
Watchdog Timer: Programmable 0 ~ 256 sec.
Power Requirement:+5V & +12V or Single +5V by 4-pin power connector; ATX Power control pin
Operating Temperature: 0 to +60 C (140 F) and 0~+85 C CPU support fanless application.

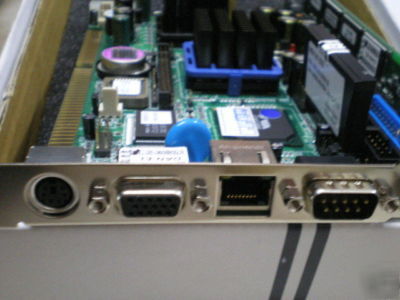

The Item Has only 4 ports, it is only the mainboard with the processor!

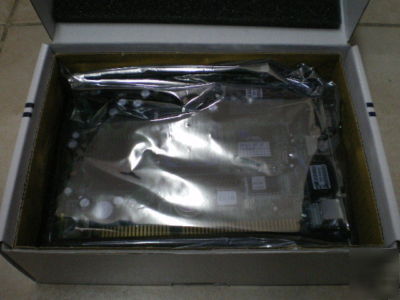

Item is in the original box and in Very Good condition.
