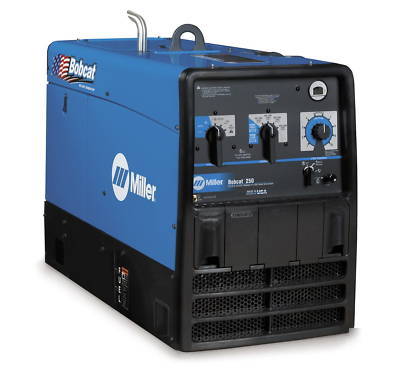

New miller bobcat 250 welder # 907211-907212
This high weld output engine drive is the standard for Stick and Flux Cored welding! The rugged Bobcat 250 has the power and key features that help you turn a profit.
New! More horsepower - 23 HP Kohler or 22 HP Robin provides more power for demanding weld and generator loads. More guts, more glory!
Quietest engine drive in its class. Fully enclosed case protects the engine and decreases sound levels by 1/3 over previous models. Removable service doors provide easy access for engine maintenance.
10,500 watts of Accu-Rated - Not Inflated generator power. Cranks out enough power for most applications: job site, farm/ranch, or home. Miller provides the strongest and most reliable generator power. Our Accu-Rated standard for measuring generator power guarantees delivery of all the power its machine promises.
New! Better Welds with Tri-Cor Technology. Delivers smoother weld output, improved Stick arc performance and decreased spatter with 7018 electrodes. All without sacrificing the already excellent performance with 6010 electrodes.
New! Larger Fuel Capacity. 12-gallon tank keeps generator running for 14 hours with a 4000-watt load. Exclusive Smart Fuel Tank is designed to minimize the chance of back splash when refueling.
Exclusive! High-Impact Protective Armor with receptacle and output stud covers provides a virtually indestructable barrier from damage. High-impact resistance in all temperatures. Other applications include: automotive bumpers, tractor hoods, lawn mower decks, etc...
Rated #1 in Reliability, the Bobcat is the welding industry's most popular choice.
Download Spec Sheet Spanish(pdf)
* Non-Critical AC TIG (GTAW)
* Air Carbon Arc (CAC-A) Cutting and Gouging (3/16 in carbons)
* Air Plasma Cutting and Gouging (PAC) with Optional Spectrum Models
* Optional Battery Charger
* with voltage-sensing feeder
* MIG/FCAW: 250 A at 28 V, 100% duty cycle
* MIG/FCAW: 275 A at 25 V, 60% duty cycle
* AC/DC Stick/TIG: 250 A at 25 V, 100% duty cycle
* Accu-Rated 10,500 Watts Peak
