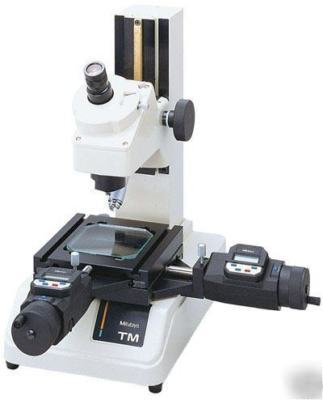

New microscope toolmaker's microscope mitutoyo 176-809A
General Tool & Supply Company of Attleboro, Massachusetts is having a huge sale on Mitutoyo Precision Tools. One of the items we are featuring in this sale is a NEW #176-809A Toolmaker's Microscope. Mitutoyo's current list price on this microscope is $6,340.00 We are selling them (while they last) for only $5,300.00
The 176-809A Toolmaker's microscope is a compact microscope well suited for measuring dimensions and angles of machined metals. It can be used to check the shape of screws and gears by attaching an optional reticle. Its compact body makes it ideal for use on shop-floors with limited space.
Please be advised, this unit (176-809A- TM-510D) comes with a 4X2 Stage. The XY-Table travel is 4"x2"
The eyepiece section of the optical tube incorporates a vernier protractor. Angle measurement is performed easily by turning the protractor to align the cross-hair reticle with the workpiece image.
Both the transmitted and reflected illumination intensity can be adjusted to obtain the optimal illumination intensity for the workpiece.
(2)- 0-2" Micrometer Heads (164-162) are included. This unit can output XY coordinate data when these micrometer heads are used with it.
