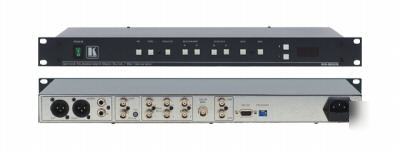

Kramer sg-6005 black burst bar sync a/v generator
Manufacturer: Kramer Electronics Model/Part #: SG-6005
Kramer SG-6005 Black Burst Bar Audio Sync Video Audio Generator
The SG-6005 is a black burst, color bar, sync, and audio tone generator for video, as well as balanced and unbalanced audio applications. It outputs 6 identical black burst signals, a composite video color bar signal, H/V sync signals and both unbalanced stereo audio signals on RCA connectors, and balanced stereo audio signals on XLR connectors. The unit may the genlocked to an external video source.
Outputs: Color Bar Generator - 13 patterns; Black Burst - 6 outputs; Sync - Horizontal or composite and vertical; Audio 1kHz Tone - 2 Balanced and 2 unbalanced.
Control - Front panel and RS-232.
Looping Analog Genlock Input - For sync and color locking.
Selectable Sync Input Signal Termination.
Black Burst Delay - In relation to genlock.
