Denton vacuum desk-1 sputtering, plasma etch, sputter

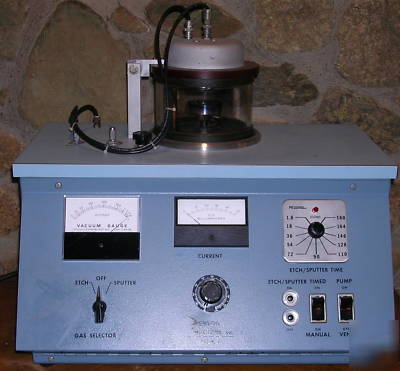

Denton Vacuum Desk-1 Sputtering System

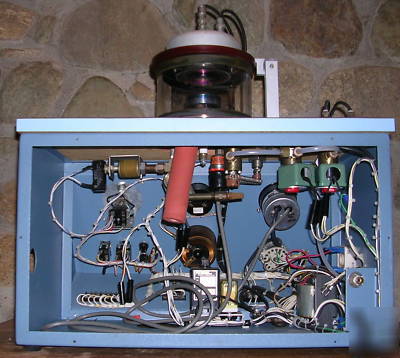

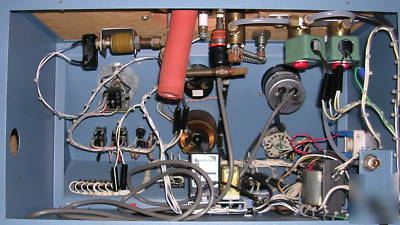

BUT I am concerned that it may be missing a component inside. There are several sets of wires that don t seem to go to anything, so I am left to wonder if the pump was pulled to get at some other piece inside. I have posted two pictured taken from the back, you should inspect those closely to see exactly what you will (and perhaps won t) get.
There are two wires dangling down lower left that end in black connectors with nothing attached, and another set lower right over by the small transformer. As the vacuum pump is switched from the front panel no doubt one set of those is for the pump. And maybe the other set is for an optional something or other or perhaps the wiring harness is used on other Desk models as well. Whatever.
