Burndy MD6-8 crimper #14 to 4/0 w/case electricians

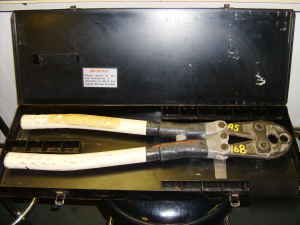

Burndy MD6-8 Crimper #14 to 4/0 with Case
Installs full range of connectors (taps, splices, terminals): #14 through 4/0. Applications: Full Tension and Non-Tension.
The MD6-8 is designed to provide over 90,000 reliable crimps
The MD6-8 installs almost all of the line, pole and house connections in the Burndy Compression Connector Program with only

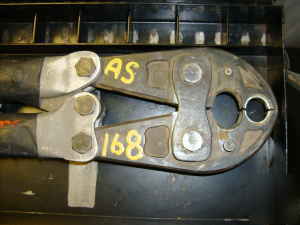

one (1) extra die set (W-BG). The tool has two (2) permanent die grooves, O and D3 for distribution tap connectors. The D3 groove
also serves as a seat for die inserts to install additional splices, taps and terminal connectors. The die inserts snap into the D3 groove
easily with one hand and lock securely in the tool with the spring loaded positive lock die retainer buttons.
Proper crimps are assured with butting steel jaws.
No additional dies required for O and D3 size tap connectors.
Increased strength and greater bearing area is provided with larger steel bolts.
Fast, easy, one-hand die insertion.
No lost dies with spring loaded positive lock die retainer buttons.
Easy visual field check for proper tool adjustment with orange alignment guide lines.
Over 90,000 crimps provided with Teflon impregnated steel backed bronze bushings.
Full crimp force assured with over center cam action.
Easy tool adjustment with allen wrench.
Operator protection provided with butt stops and heat shrink tubing.
Long life expectancy provided with select clear hickory handles and lightweight high strength aluminum alloy castings.
Easier tool operation is provided with bent handles and anti-slip grips.
The D3 groove accommodates the complete line of type W- die inserts.
