13 cu. ft. jwi filter press - 630 mm - c.g.r. #5729

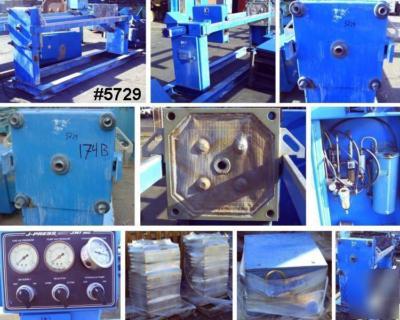

13 CU. FT. JWI FILTER PRESS - 630 MM - C.G.R.
1 - used approx. 13 cu. ft. JWI Filter Press. Model #D630G32-17-5A. Serial number 315. Includes 44 intermediate plates + head + tail. Polypropylene plates are 25 in. X 25 in. (630 mm) center feed 4 corner return caulked gasketed & recessed. Overall dimensions of press are approx. 13 ft. 4 in. long x 40 in. wide x 58 in. high. Hydraulic stroke is 20 inches. Control panel has dials for Line Air Pressure (0-160 psi) Pump Air Pressure (0-160 psi) and Hydraulic Pressure (0-6000 psi). Switches on control panel for Air Supply (On/Off) Pump Air Pressure Selector (Open/Close) and Hydraulic Pump (On/Off). Includes eletrical box (24 in. x 24 in. x 9 in.) F.O.B. CLEVELAND OH
