10" x 40" kellenberger model 1000U universal grinder

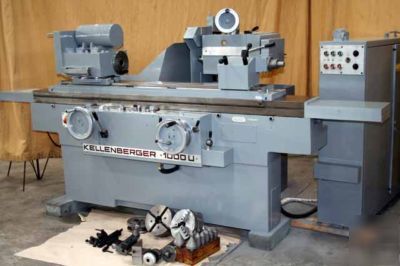

10" x 40" KELLENBERGER MODEL 1000U UNIVERSAL GRINDER
Serial No. 32462-2489 Age: 1982
Distance between Centers 39-3/8"
Traverse per Revolution of Handwheel Coarse .8"
Traverse per Revolution of Handwheel Fine .1"
Traverse Speed (Infinitely Variable) .06-18 FPM
Dwell at Reversal (Infinitely Variable) 0.5 Sec
Travel with Handwheel Coarse/Fine 9-5/8"
Infeed per Revolution of Handwheel Coarse .3"
Infeed per Revolution of Handwheel Fine .04"
Rapid Advance and Retraction, Hydraulic 1-9/16"
Plunge Grinding, Infeed Speed .00001-.0001
Traverse Grinding, Infeed per Table-Slide Reversal .00004-1.18
Grinding Wheel for OD Grinding 16" x 2" x 5"
Grinding Wheel for Right Hand Spindle End 9" x 3/4" x 3"
Spindle Speeds 1500, 1700, 2200 RPM
Wheelhead Swivel Range 8 to -195
Carrier Bore for Internal Grinding Spindles 3-5/32"
Spindle Speeds (Infinitely Variable) 20-400 RPM
Internal Taper of Work Spindle No. 5 Morse
Equipped With:Motor Driven With 4.5 HP, 230 Volt/3 Phase, 60 Cycle Spindle Drive. 6" Permanent Magnetic Chuck. MD Workhead. MD Hydraulics. Complete Electrical Controls.

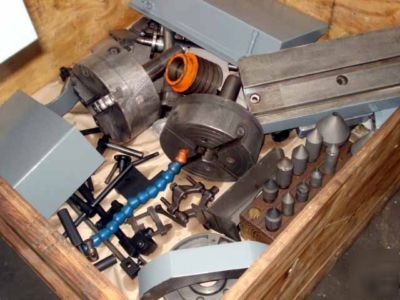

270 Swiveling Wheelhead With Indexing And Clamping Every 90 . External Grinding Wheel (LH) And Face/Surface Grinding Wheel (RH). ID Spindle. Indexing And Clamping Every 90 Allows For Multiple Operations To Be Performed In One Chucking Of The Workpiece. Rise & Fall Mechanism For Grinding Wheelhead. 360 Swiveling Workhead With Combination Live/Dead Spindle. Hydraulic Infeed. Hydraulic Traverse. Plunge Feed. Pick Feed. Dwell Timer. Shift Knob For Coarse/Fine Feeds. Inch Reading Dials. Surface Grinding Capability. Internal Grinding Spindle. 8" 3-Jaw Chuck. 6" Magnetic Chuck. Steady Rest. (2) Back Rests. Assorted Centers And Drive Dogs. Coolant Pumps And Tank With Magnetic Separator. Leveling Pads.
