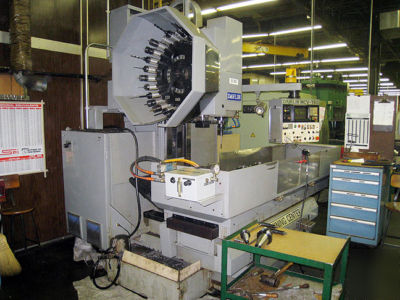

Dahlin model mcv-760 cnc vertical machining center
DAHLIN MODEL MCV-760 CNC VERTICAL MACHINING CENTER
Distance of spindle end to table top 5.9" - 28"
Distance of spindle center to column surface 21.7"
Spindle speed range Infinite variable
Cutting feed 0.04 - 157 inch/mm
Minimum input increment 0.0001"

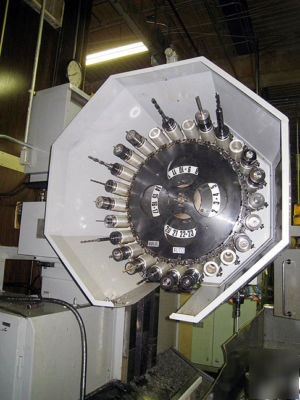

Tool storage capacity 25 Tools
Max. tool dia. x length 3.6 x 11.8 dia. x inch
Max. tool weight 13 LBS Weight (approx.) 14,300 LBS
Spindle drive motor (rated output for 30 minutes): Model 6 7.5 (10HP)
24 Position tool changer Fixture Chucks
