5 coaxial rf patch cable w/ male sma connectors - 12 ft

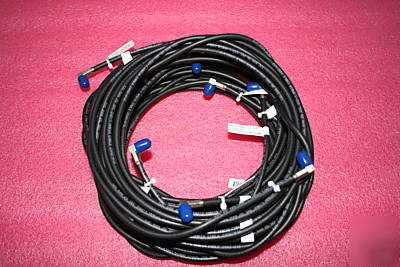

NEW LOT OF 5 flexible RF coaxial cables in 12 foot (3.7 meter) length with two SMA Male angled connectors. These cables are high quality, durable product.
I also have these in lengths from 2 inches to 15 feet. Email me with your requirements.
* Manufacturer: Habia Cable, Huber+Suhner connectors
* Silver plated copper wire, double screened and double stranded, No RG (cable diameter and flexibility like RG-223 cable)
* Cable Max. Operating frequency: 6 GHz
* Velocity of signal propagation: 82%
* Insulation resistance: >100000000 M m
* Operating Voltage: 0.5kVrms
* Attenuation: At 30 MHZ: 4.8 dB/100m
* Dielectric: Polyetylene, foam
* Operating Temp. Range: -40 to 70 C (40 to 158 F)
* Jacket: LSFH (modified polyethylene)
* Wire diameter: 5.7mm (0.22")
* Connectors: Huber + Suhner SMA Male Right Angled, crimped; Part # 16SMA-50-4-160/133
* Coaxial connector Interface Frequency max: <18 GHz
* Flame Retardant according to IEC 332-1
* No magnetic nickel in any materials
* THIS SALE IS FOR A LOT OF 5 CABLES.
